dynabook Portege X30L-K Series User Manual

The Wireless LAN module cannot be removed, please replace it with a new System Board.
4.20.2 Removing the W-LAN ANTENNA
1. Remove the the following screws and disconnect CORNER CAP R (W-
LAN ANTENNA MAIN (white cable).
2. Open the INSU and release the W-LAN ANTENNA CABLE (W-LAN
ANTENNA AUX (black cable).
3. Disconnect CORNER CAP L.

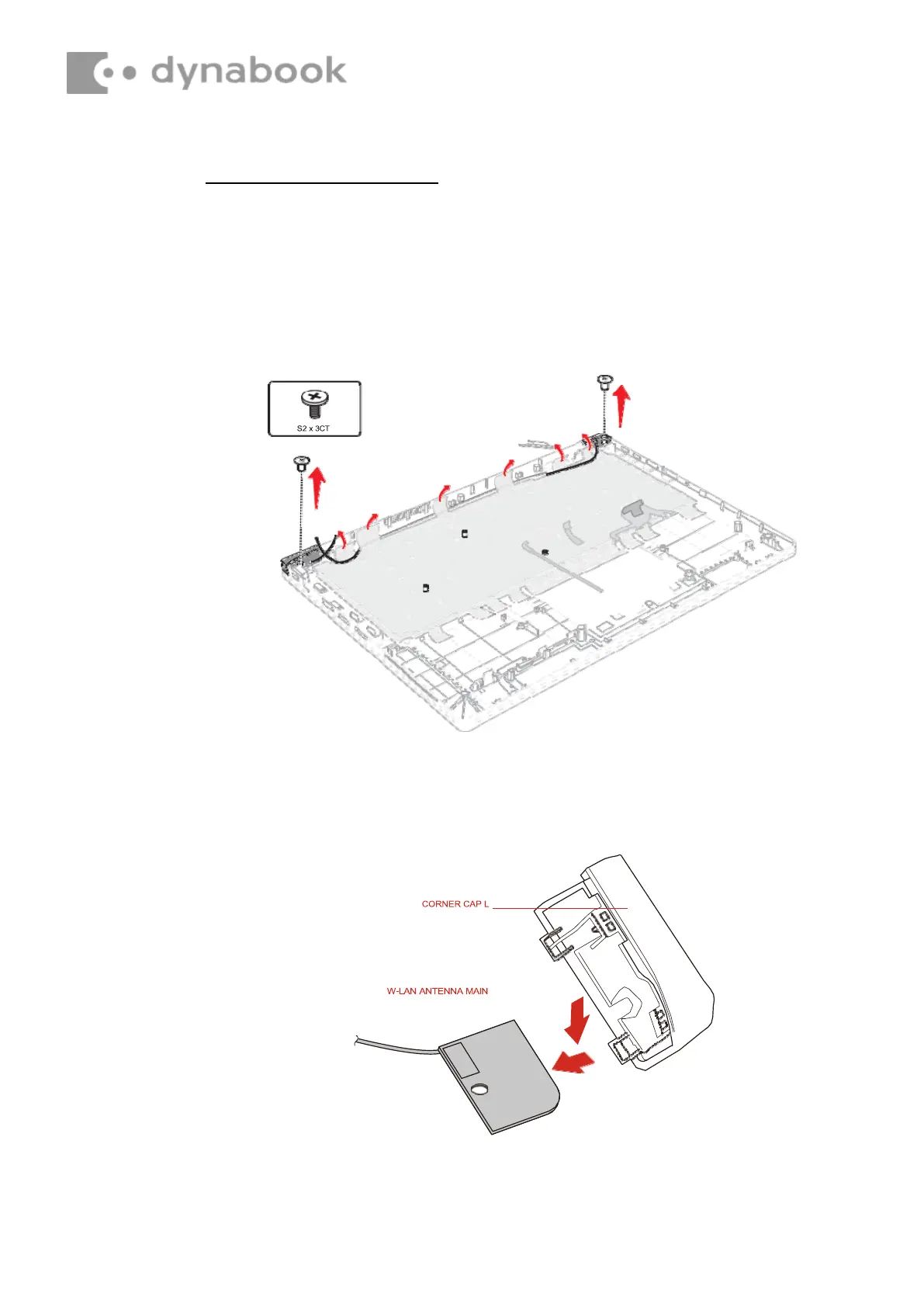

Figure 4-20 Removing the W-LAN ANTENNA (1)
4. Peel off the W-LAN ANTENNA MAIN (white cable) from the CORNER
CAP R and W-LAN ANTENNA AUX (black cable) from the CORNER
CAP L.
Figure 4-21 Removing the W-LAN ANTENNA (2)
