dynabook Portege X30L-K Series User Manual

locating pin

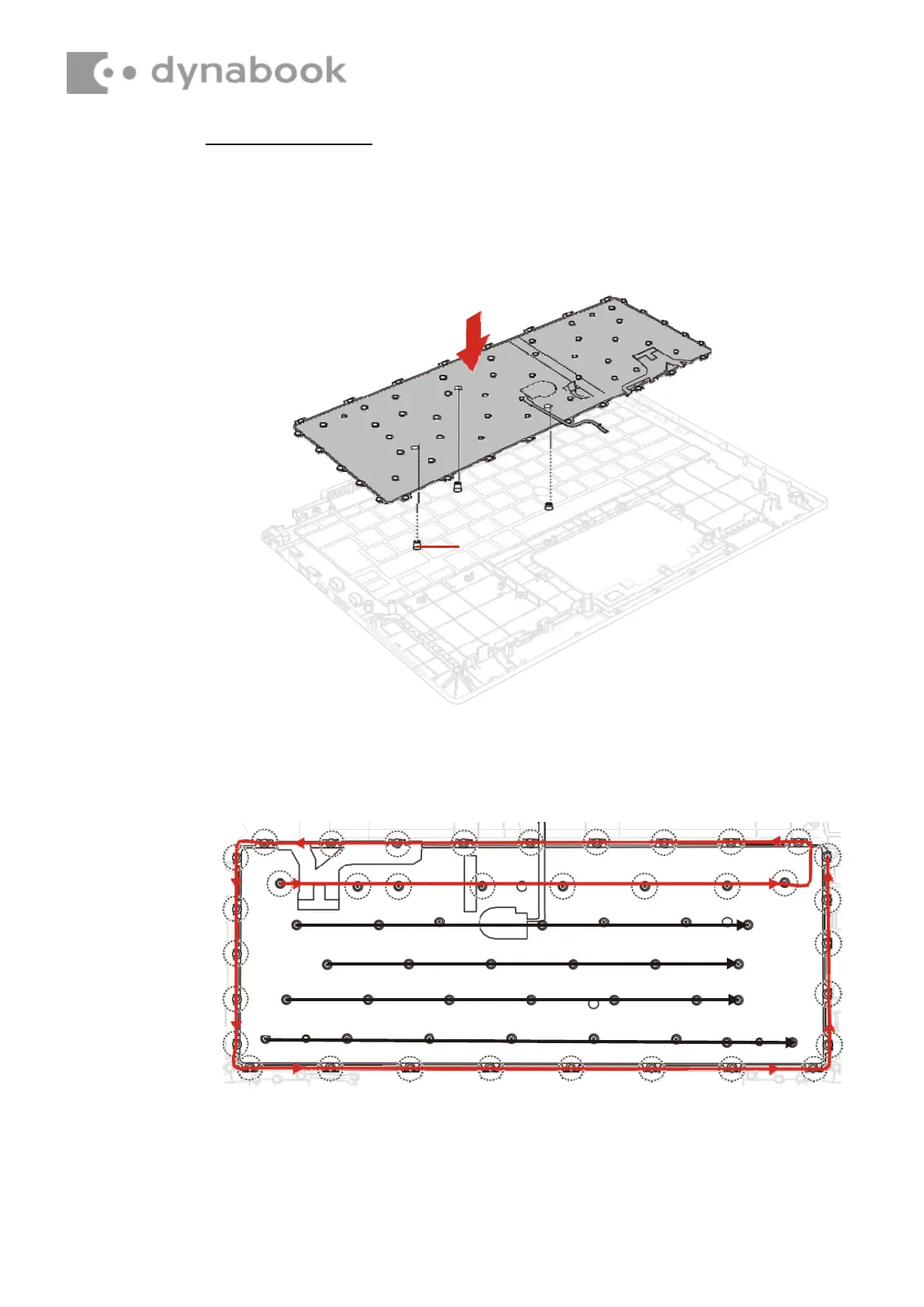

4.24.2 Installing the Keyboard
To install the keyboard, follow the steps below.
1. Align the locating pins and set the KEYBOARD to the COVER ASSY in
place.
Figure 4-35 Installing the keyboard (1)
2. Secure the KEYBOARD with the following screws. Be sure to secure
the screws follow the arrow order on below figure.
Figure 4-36 Installing the keyboard (2)
35
3. Stick a new INSU KB to the COVER ASSY in place. Make sure the
whole INSU KB is flatly sticked including the four corners.
1
28
1
