dynabook Portege X30L-K Series - 4.16 Smart Card slot; 4.16.1 Removing the Smart Card slot

WLAN MAIN holder
CN2170
Smart Card Slot FFC
Smart Card Slot
S2x2BT
4.16 Smart Card slot
4.16.1 Removing the Smart Card slot
To remove the Smart Card slot unit, follow the steps below.
1. Remove the WLAN MAIN holder.

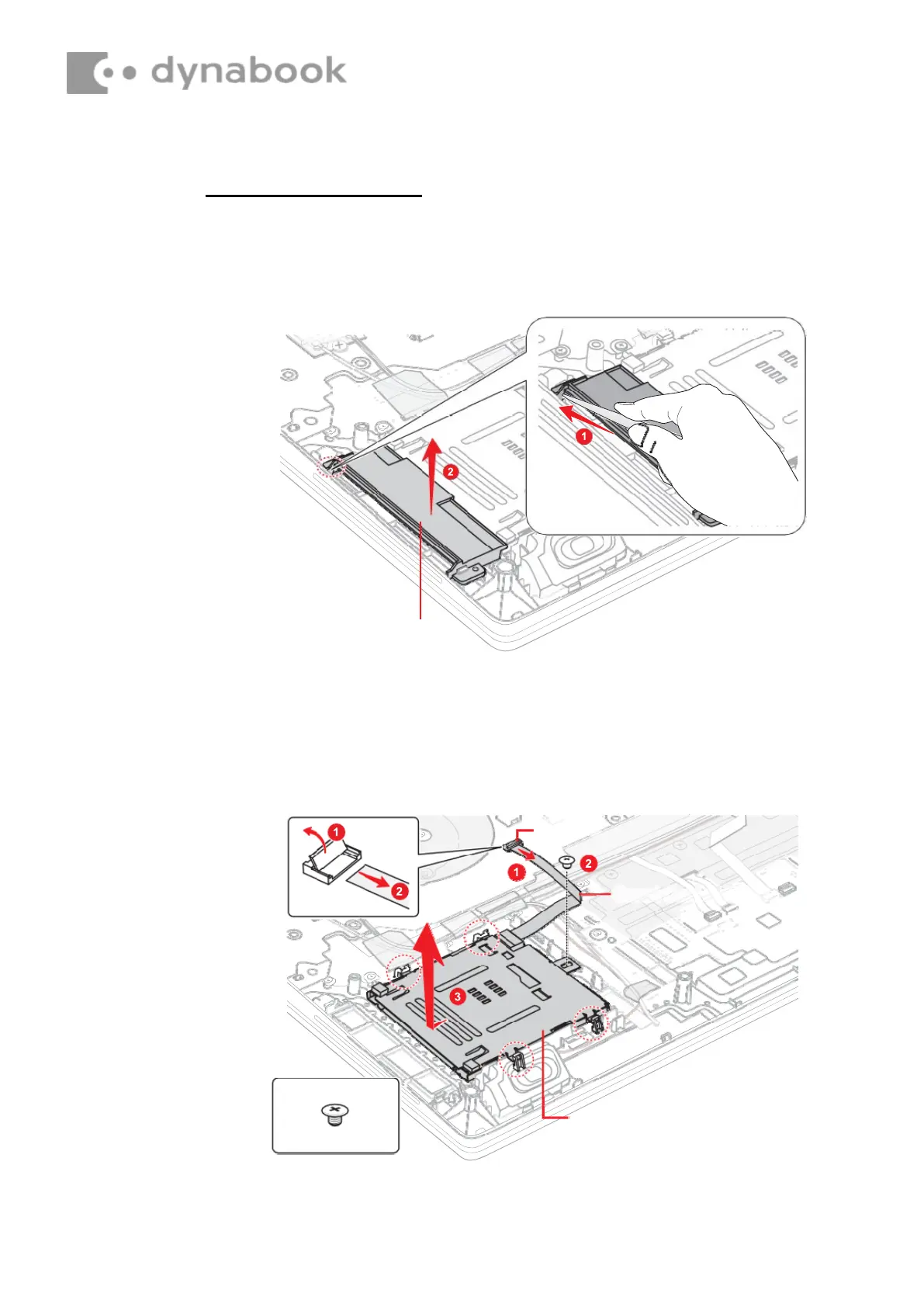

Figure 4-11 Removing the Smart Card slot (1)
2. Disconnect the Smart Card slot FFC from the connector CN2170 on
the system board.
3. Remove the following screw, and then slide and lift the Smart Card slot
unit shown in the following figure to remove the Smart Card slot.
Figure 4-12 Removing the Smart Card slot (2)
4. Disconnect the Smart Card slot FFC from the connector on the Smart
Card slot.
