dynabook Portege X30L-K Series - 4.14.2 Installing the Fan; 4.15 Fin; 4.15.1 Removing the Fin

Fan
Fan Harness
CN3380

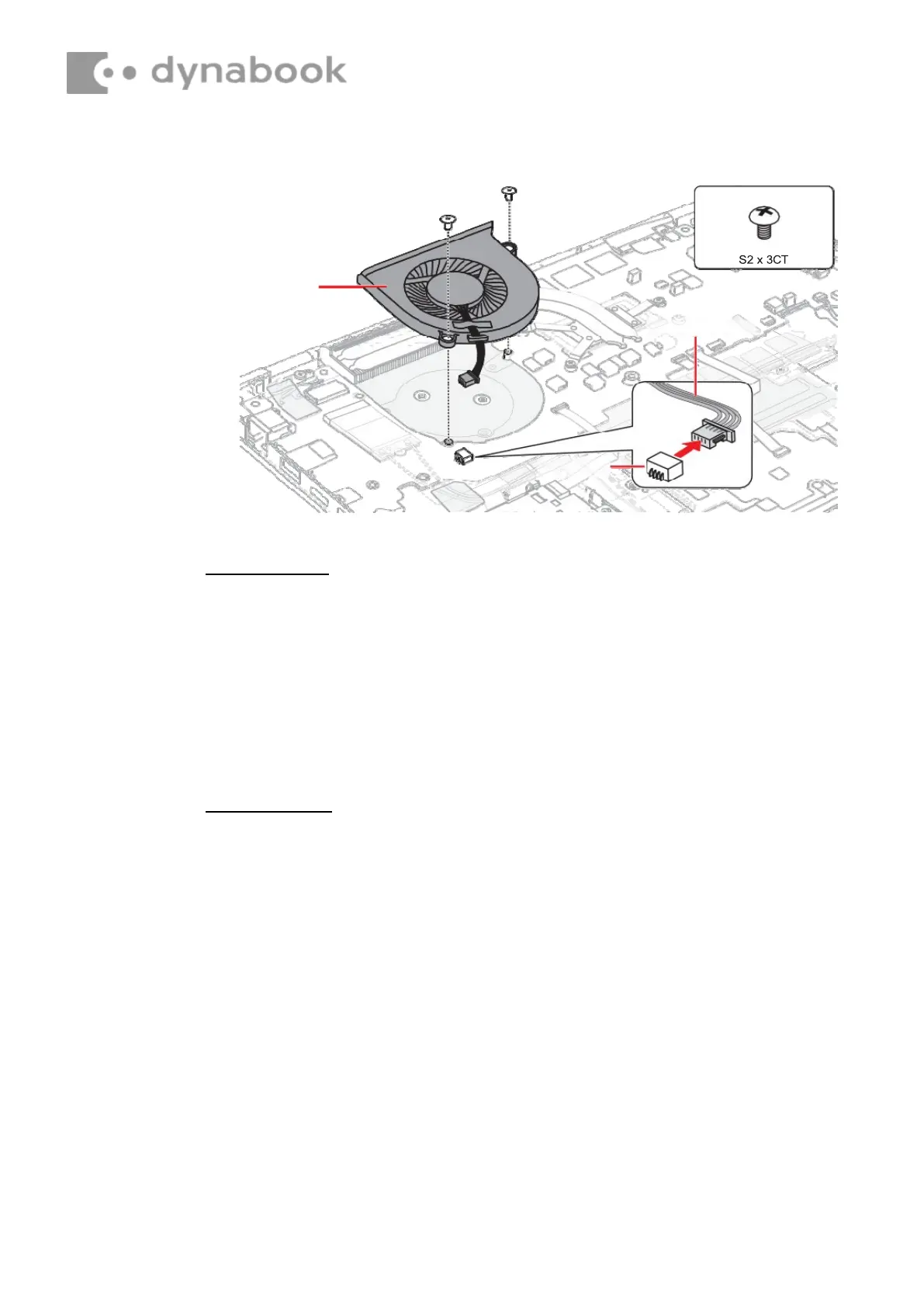

Figure 4-9 Removing the Fan
4.14.2 Installing the Fan
To install the Fan, follow the steps below.
1. Set the Fan in place on the Cover Assembly and secure it with the
screws.
2. Connect the Fan harness to the connector CN3380 on the System
Board.
4.15 Fin
4.15.1 Removing the Fin
To remove the Fin, follow the steps below.
1. Remove the following screws and then the Fin.
