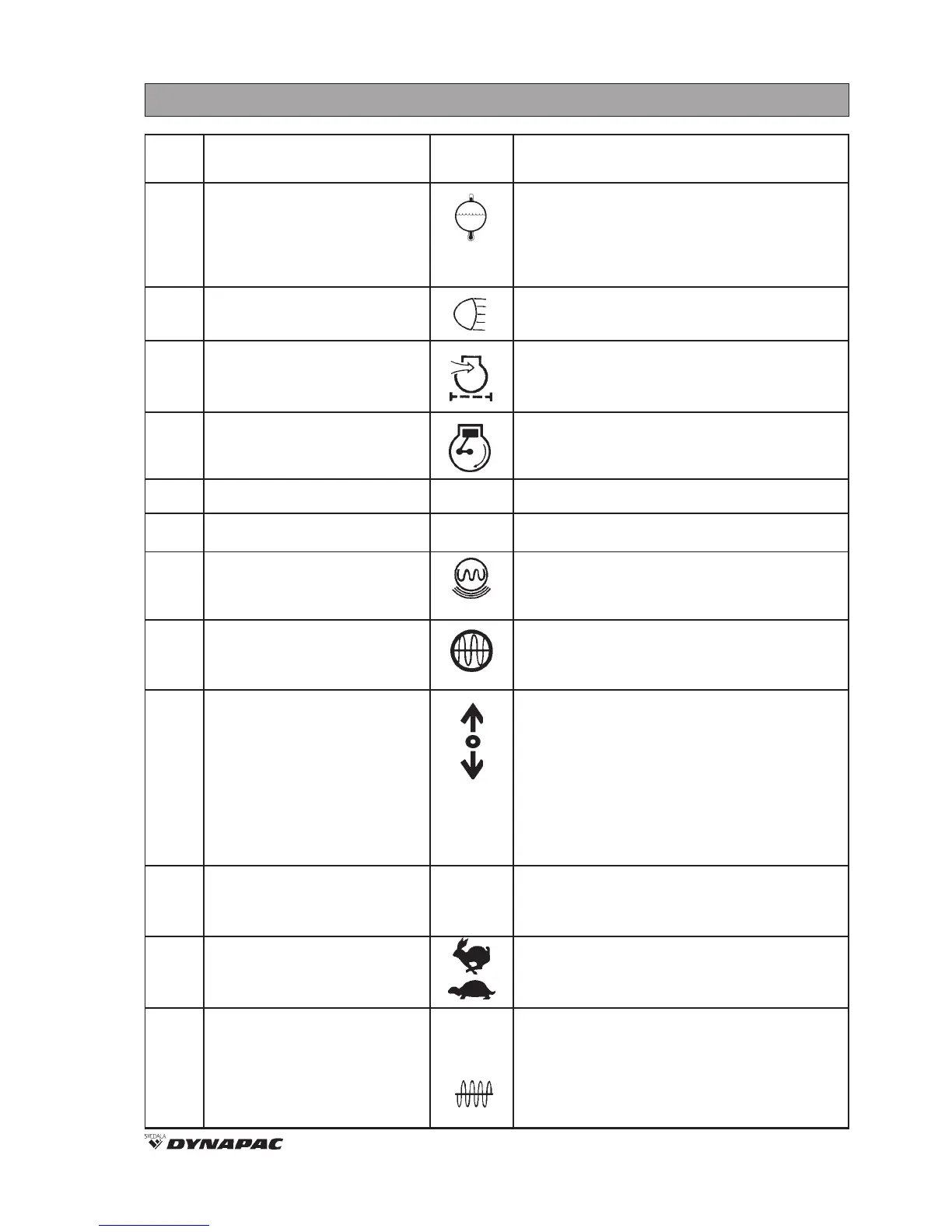

INSTRUMENTS AND CONTROLS, FUNCTIONAL DESCRIPTION
MAN
O
AUT
Indicates engine working temperature. Normal
temperature range 82°C–93°C (180°C–199°C).
Stop the engine if the gauge indicates more
than 103°C (217°F), remedy the cause.
See engine manual.
Turn right to switch on the main beam.
If the warning lamp lights at full engine revs
it is an indication that the air cleaner needs
cleaning or replacement.
Indicates current engine speed in revs per
minute. Multiply the meter value by 100. The
running time in hours is indicated digitally.
See separate instructions.
The outer scale indicates km/h, the inner mph.
The inner scale indicates the current motor
speed. The outer scale indicates the vibra-
tion frequency.
Press to switch vibration on.
Press again to switch vibration off.
Applies when (27) is in the MAN mode.
The lever must be in neutral to enable the
engine to start; the engine will not start if the
forward/reverse lever is in any other position.
The forward/reverse lever controls the driving
direction and speed of the roller Move the
lever forward to drive the roller forward, etc.
Speed of the roller is proportional to move-
ment of the lever from the neutral position.
The further from neutral the higher the speed.
Limits movement of the F/R lever and thus
the speed.
The speed control can be bypassed.
Transportation speed (High)
Working speed (Low)
In the MAN mode the vibration is switched
ON/OFF with (23).
Vibration is OFF in the O mode.
The AUT mode gives automatic switching
of vibration ON/OFF while driving forward or
reverse.
16 Engine temperature gauge
17 Main and dipped beam.
control lamp, (optional)
18 Warning lamp – air cleaner
19 Tachometer/hourmeter
20 Compaction meter, (optional)
21 Speedometer (optional)
22 Vibration/Frequency meter
(optional equipment)
23 Vibration ON/OFF
24 Forward/reverse lever
25 Speed control
(optional equipment)
26 Speed selector
27 Vibration setting
(optional equipment)
