14 LH700 ILH700EN1

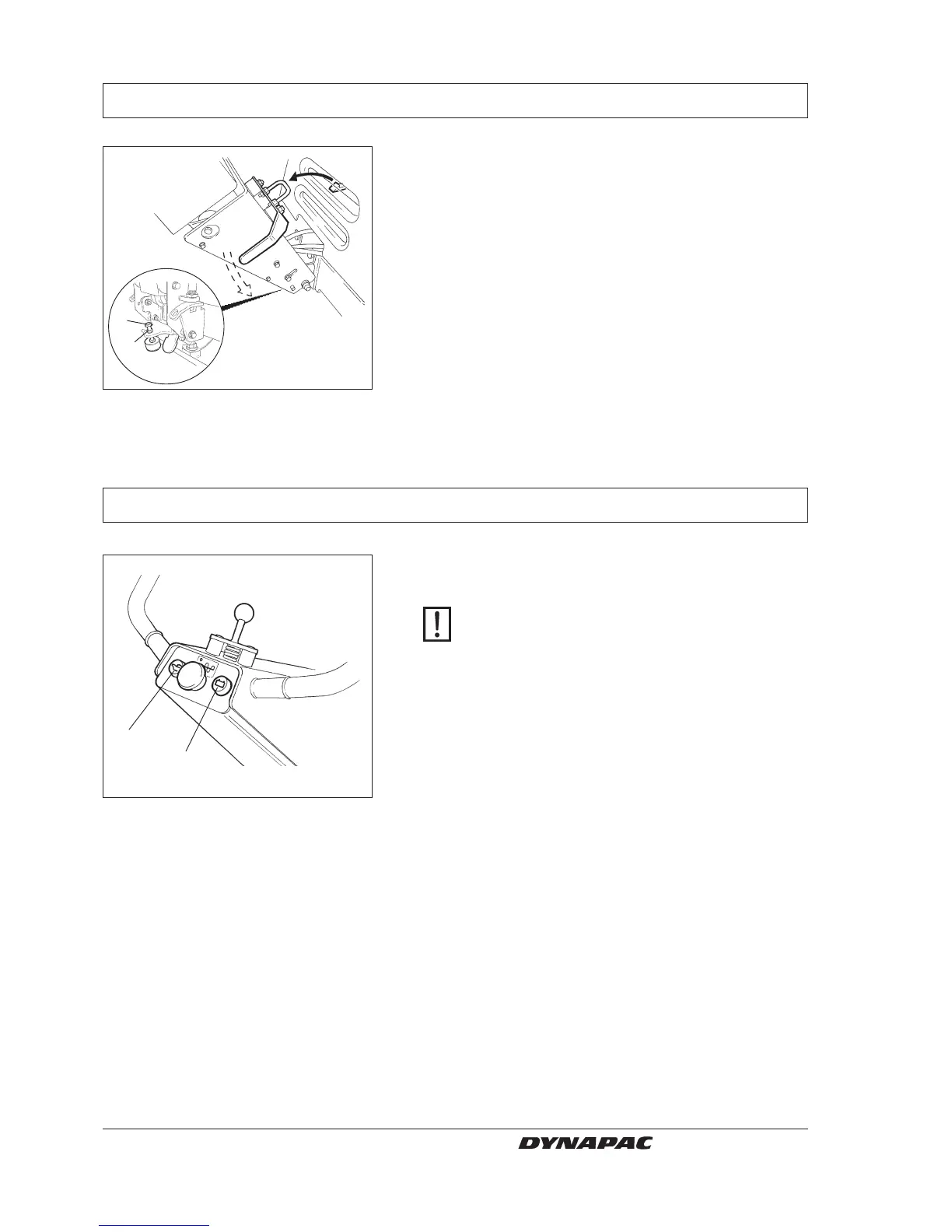

HANDLE ADJUSTMENTS
The operation angle of the handle can be adjusted by
loosening the bolt (2) and tightening it in desired position.
Loosen the bolt and lock nut (3) and pull them to the
desired position.
2. Angle adjustment bolt
3. Lock nut
CONTROL LAMPS
The has two warning lamps, one for oil pressure (1)
and one for charging (2).
The charging and oil pressure lamps must be
extinguished during normal operation. If the
lamps do not go out, stop the machine and take
corrective action.
2
1. Oil pressure lamp
2. Charging lamp
1
3
2
L000439
L000440
L000441
CAUTION
