15LH700 ILH700EN1

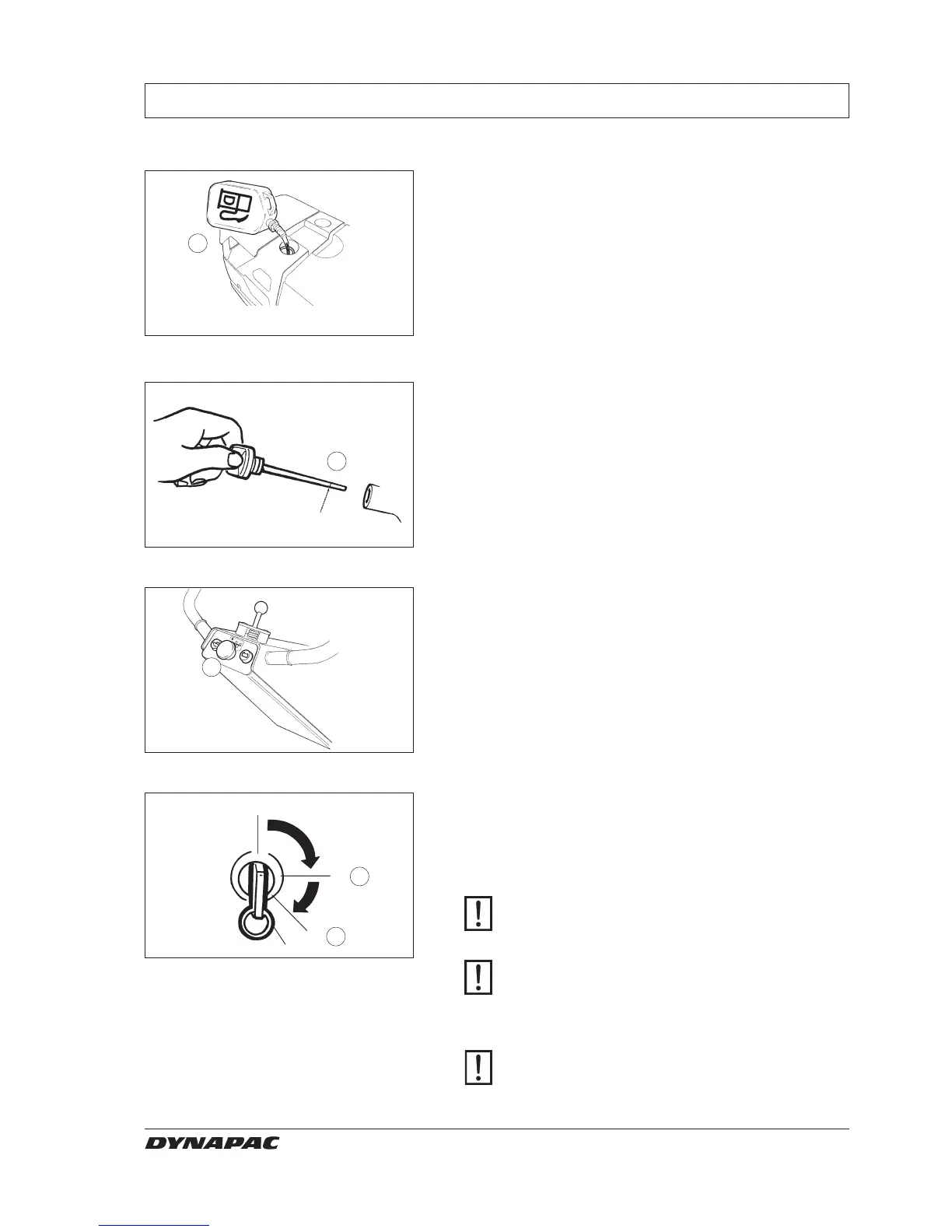

OPERATION – HATZ 1D90V, EL.START
1. Fill the fuel tank.
Tank volume: 7,0 l
Before start
Starting the engine
2. Check the engine oil level.
Oil volume: 1,9 l
Max.
3. Press the emergency knob (vibration OFF).
4. Insert the starter key and turn it to position I. Charg-
ing and oil pressure indicators light up.
5. Turn the starter key through position II to III. Re-
lease the key as soon as the engine runs.
Ensure that the key stays at mode II.
The charging and oil pressure lamps must be
extinguished during normal operation. If the
lamps do not go out, stop the machine and take
corrective action.
If the engine fails to start, turn the key to zero
and wait 5 to 10 seconds before making a new
attempt to start (Fitted with electronic starting
protection module).
2
3
5
I
II
O
6
III
4
L000455
L000456
L000457
L000454
CAUTION
CAUTION
CAUTION
