Dynapac LP8500 - LIFTING AND TRANSPORT GUIDELINES; Safe lifting procedures and points; Secure transportation and lashing

25
LP8500 ILP8500EN1
1
LIFTING AND TRANSPORT
Never walk or stand under a lifted machine.
Connect lifting hook in lifteye (1). Make sure
that parking brake is locked when lifting the
machine.
All lifting devices must be dimensioned to meet
all regulations.
Weight, kg (lbs) :
850 mm (33.5 in) wide drums 1675 (3,693)
Lifting
L000359C

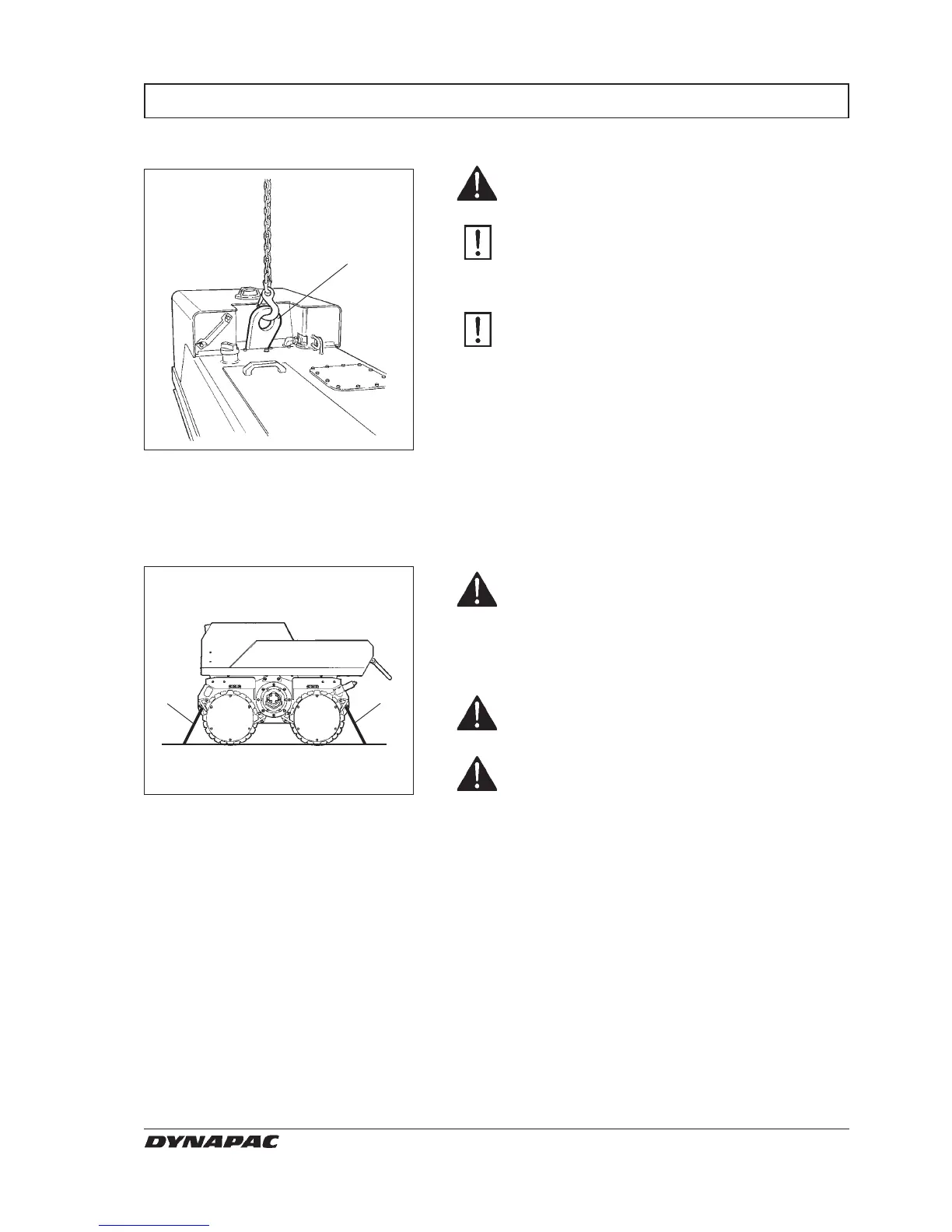

Machine ready for lifting
1. Lifting lug
Transportation
L000339B
Always lash the machine securely for all
transportation. Use the front and rear towing
attachments to lash the machine.
Clamp down the roller with lashing strap (1) both front
and rear; decals indicate the fixing points.
Clamp down force max 40 kN per tie down
eye.
Towing of the machine is forbidden.
Machine ready for transportation
1. Lashing strap
1
1
WARNING
CAUTION
CAUTION
WARNING
WARNING
WARNING
