Dynapac LP8500 - OPERATION - TEMPORARY (MANUAL) CONTROLS; Manual control panel identification

21
LP8500 ILP8500EN1
1
2
6
OPERATION – TEMPORARY OPERATED

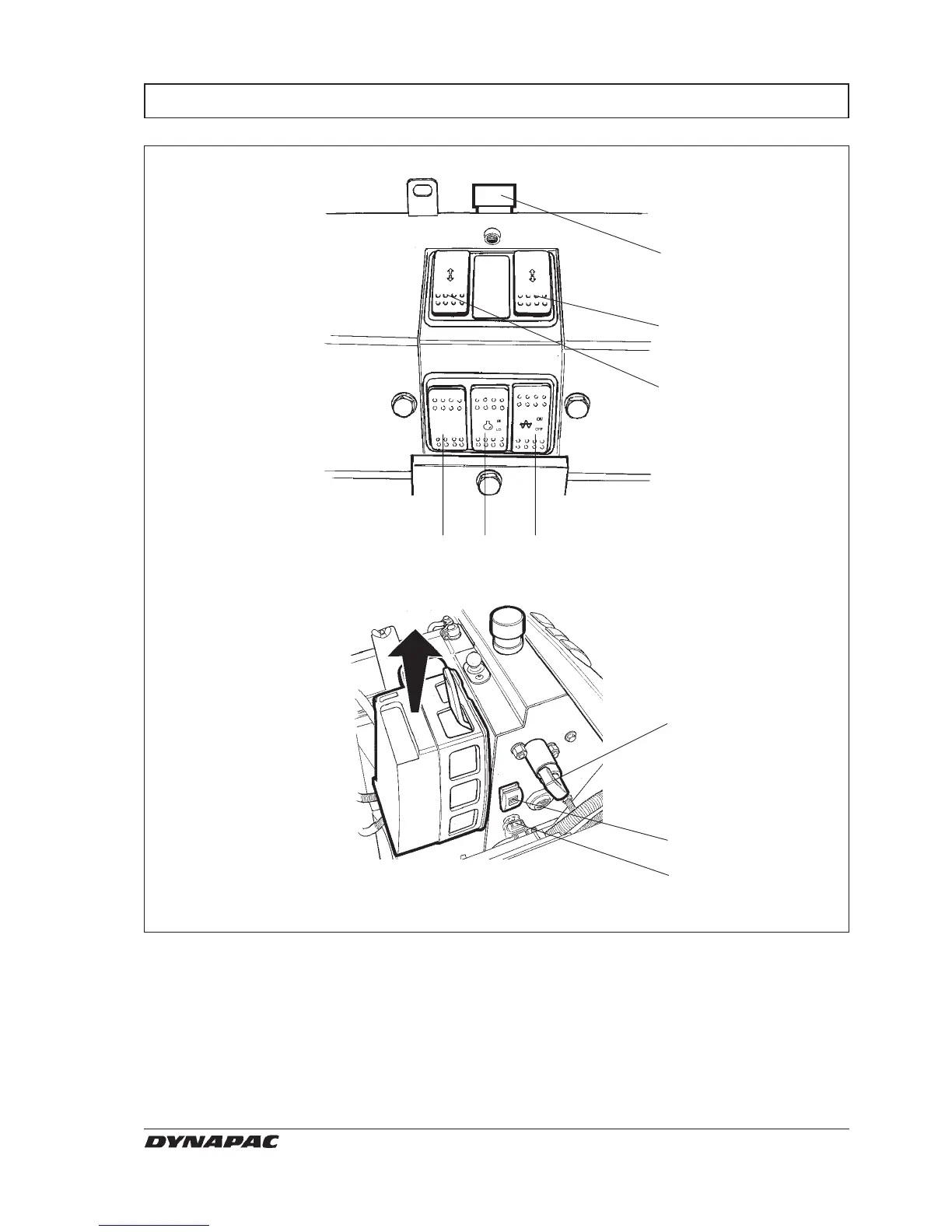

1. Control switch for forward and reverse left side
2. Control switch for forward and reverse right side
3. Switch high / low speed. Vibration can
only be used when switch is in low
4. Switch for vibration on-off (clockwise / counterclockwise)
5. Emergency stop
6. Throttle control
7. Fuse box
8. Start button
9. Battery disconnector
5
34
7
9
8
