13
LP8500 ILP8500EN1
TECHNICAL DATA – RADIO REMOTE CONTROL UNIT
Operating ambient temperature -20 to +65°C (-4 to +149°F)
Insulation class - Protection IP65
TRANSMITTER Nano-L-A2-1
Transmission frequency range 433.100-434.750 MHz, 25 mW FM
The use of synthesizer technology permits frequencies to be selected in accordance with the
appropriate waveband for the country of use.
Low frequency modulation FSK signal to CCITT V.23
Data repetition rate about 60 ms
Baud rate 1200 baud (bits per sec.)
Range 300 up to 1000 m
Power input 60-100 mA
RF ouput Max. 10 mW
Weight (without battery) Size (L x W xH)
Nano-L 1,0kg 24,7 x 13,9 x 11,7 cm
RECEIVER PNN-Compact
Reception frequency range 433.100-434.750 MHz
Data security:
Generates a CRC code with a Hamming distance = 4.
Generates a neutral position.
Addressing of each transmitter with its own, unique combination (max. 2
16
possible combinations).
Data reception security:
Diversitary evaluators, CRC, start/stop switch and neutral position bits.
Contact loading for commands.
typ. switching voltage 12 V
max. switching current 60 A resp. 2 A (depends on coil type)
Weight Size (L x W x H - incl. plate)
PNN-Compact 2,4 kg 22 x 16 x 6 cm
BATTERY 7,2V / 0,6 Ah
CHARGING UNIT
Operating voltage / external charging unit 12V / 24V DC, 110V / 230V AC
Operating voltage / PNN-Compact 12V DC

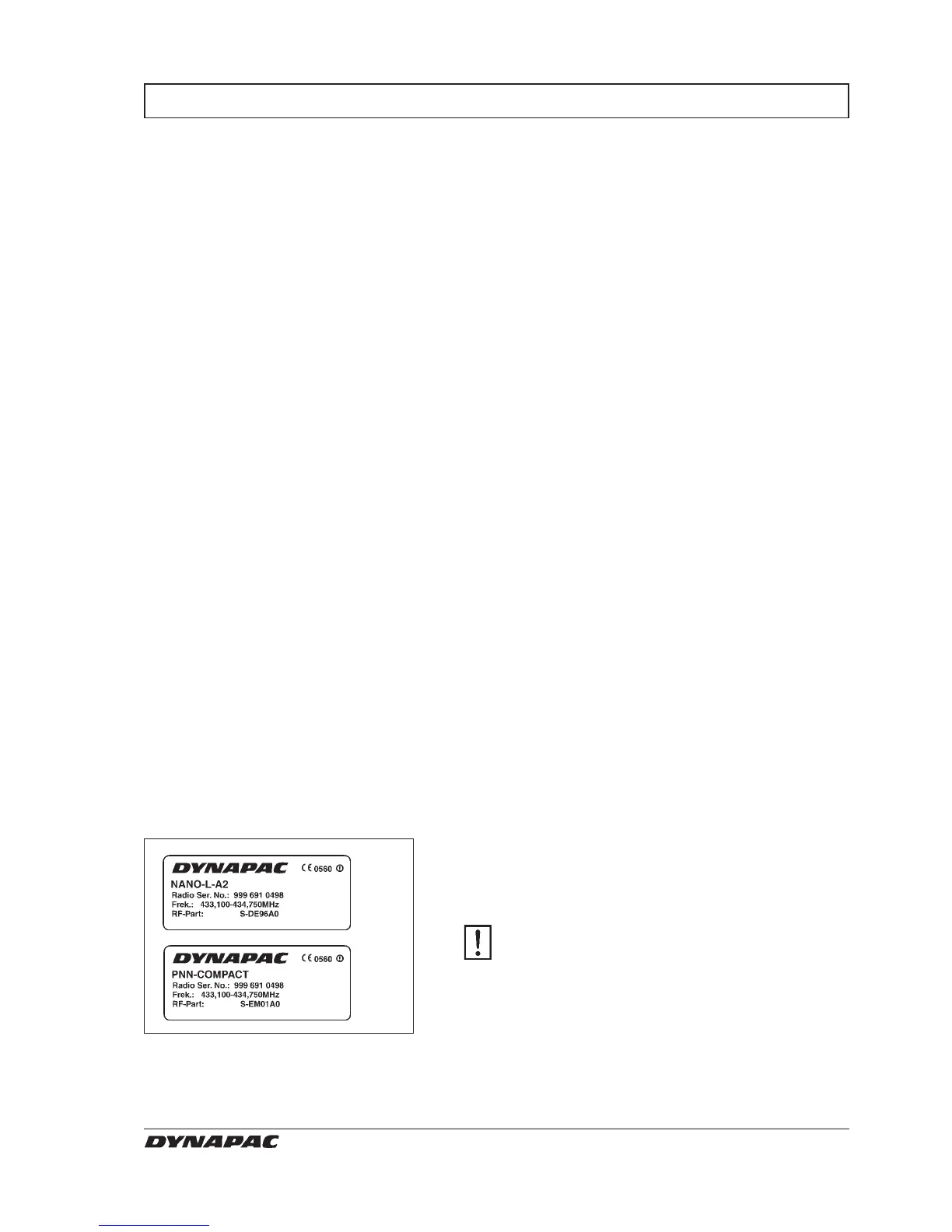

Data signs
Data signs are located behind the battery on the trans-
mitter and receiver. The data includes the serial
number, model designations and frequency band. The
transmitter and receiver have the same serial number.
Always specify the serial number when you
make queries about the control equipment.
L000350A
L000351A
CAUTION
