33
LP8500 ILP8500EN1
1
3
2
4
6
8
7
8
9
11,12
11,12
14
15,12
16
16
17,18
5
19
10,20
21
5
22
FRONT
REAR
216 Nm
Loctite 243
13
Loctite
243
335 Nm
Loctite 243
216 Nm
Loctite 243
110 Nm
Loctite 243
216 Nm
Loctite 243
Note! Bolt tight from
this side only.

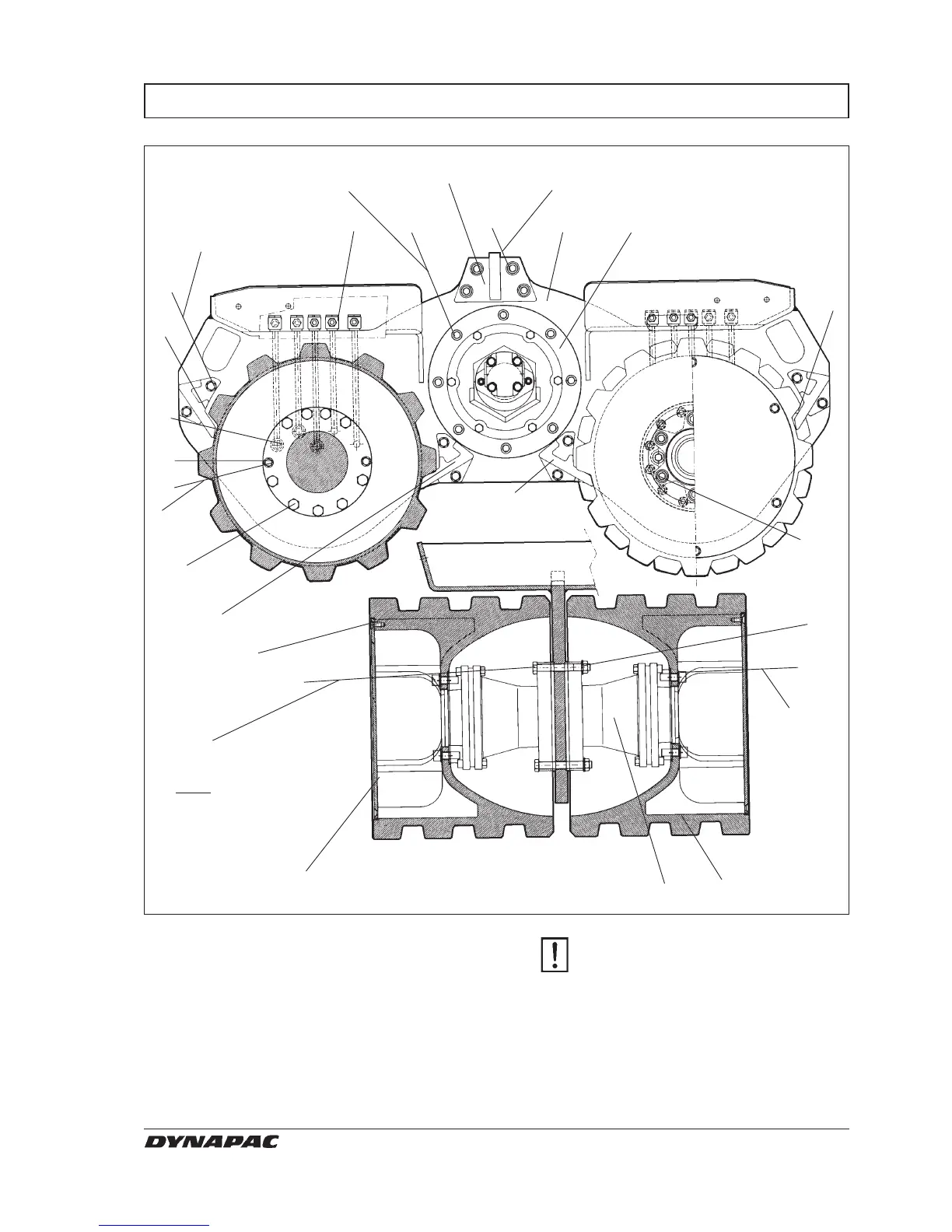

MAINTENANCE – CHANGE OF DRUM
L000380A
1. Lift the machine at one end.
2. Remove the scrapers (5), (16) with screw (17).
3. Unscrew screws (22) on both sides and remove
cover (4).
4. Unscrew screw (11) and remove the drum.
5. Clean the contact surfaces carefully.
6. Mount new drum and fasten with screw (11).
Note! Torque, and locking.
7. Assemble cover (4). Note that there is a seal.
8. Place the scrapers (5) and (16)
Note! Torque, and locking.
Change the O rings when assem-
bling the drum motors. Fasten the
wheelmotor with bolt (14) and
washer (13) on both sides. Then fix
with the bolt (8) and nut (9) and tight
to final torque 280 Nm in a star
pattern.
CAUTION
