- Extend or shorten the braces by rotating the adjustment rods (5) until the retaining
pins can be inserted.
- Retighten the lock nuts (4).
- Install the split pin (1) and retaining pin (2).
m
Each time the height is adjusted, the auger must be realigned via the braces!
A
See section "Aligning the auger"!
m

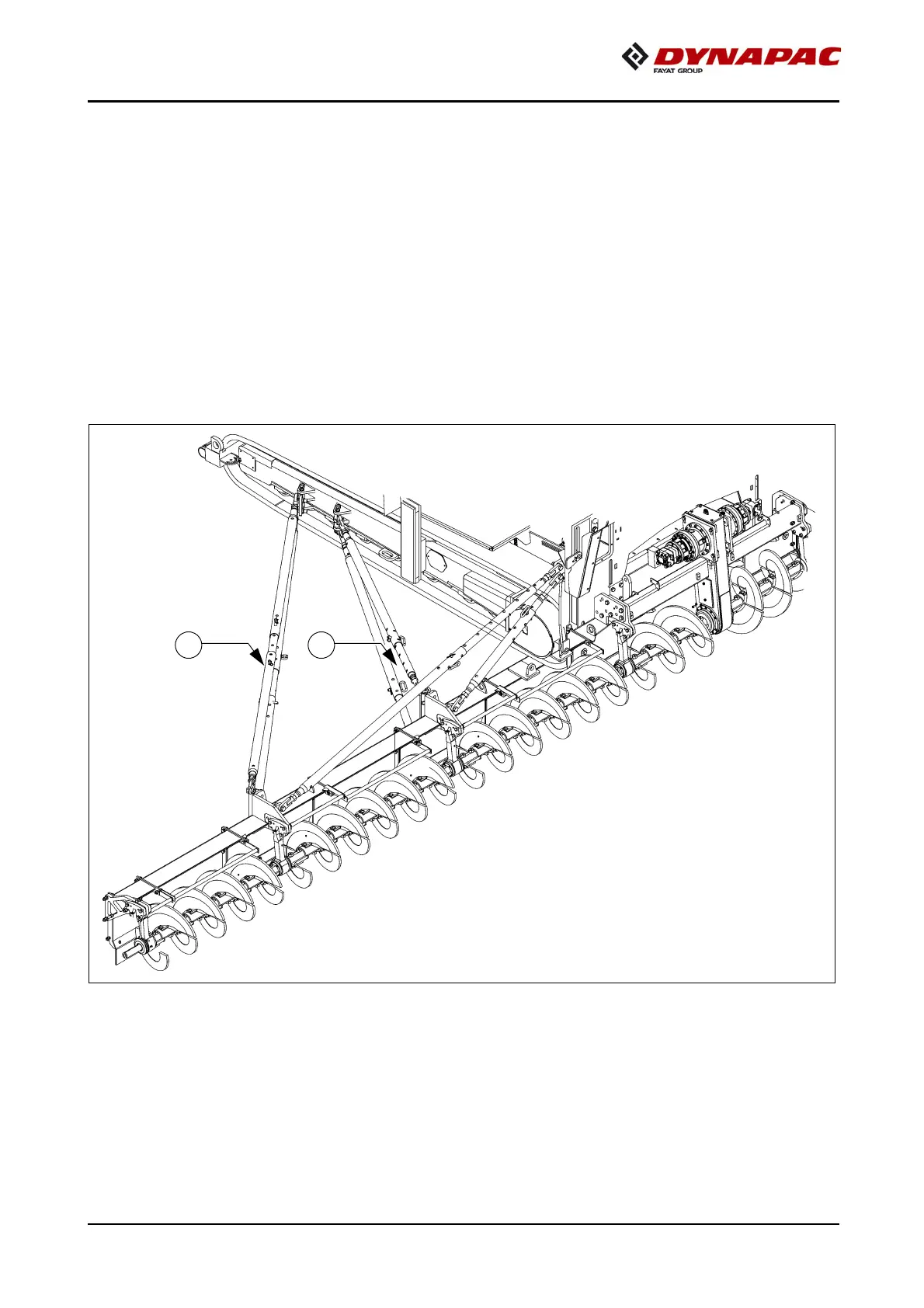

In the case of large working widths with double braces, the procedure must be carried
out on both pairs of braces (6) / (7)!
