DS551LT7
User
Manu
al
20

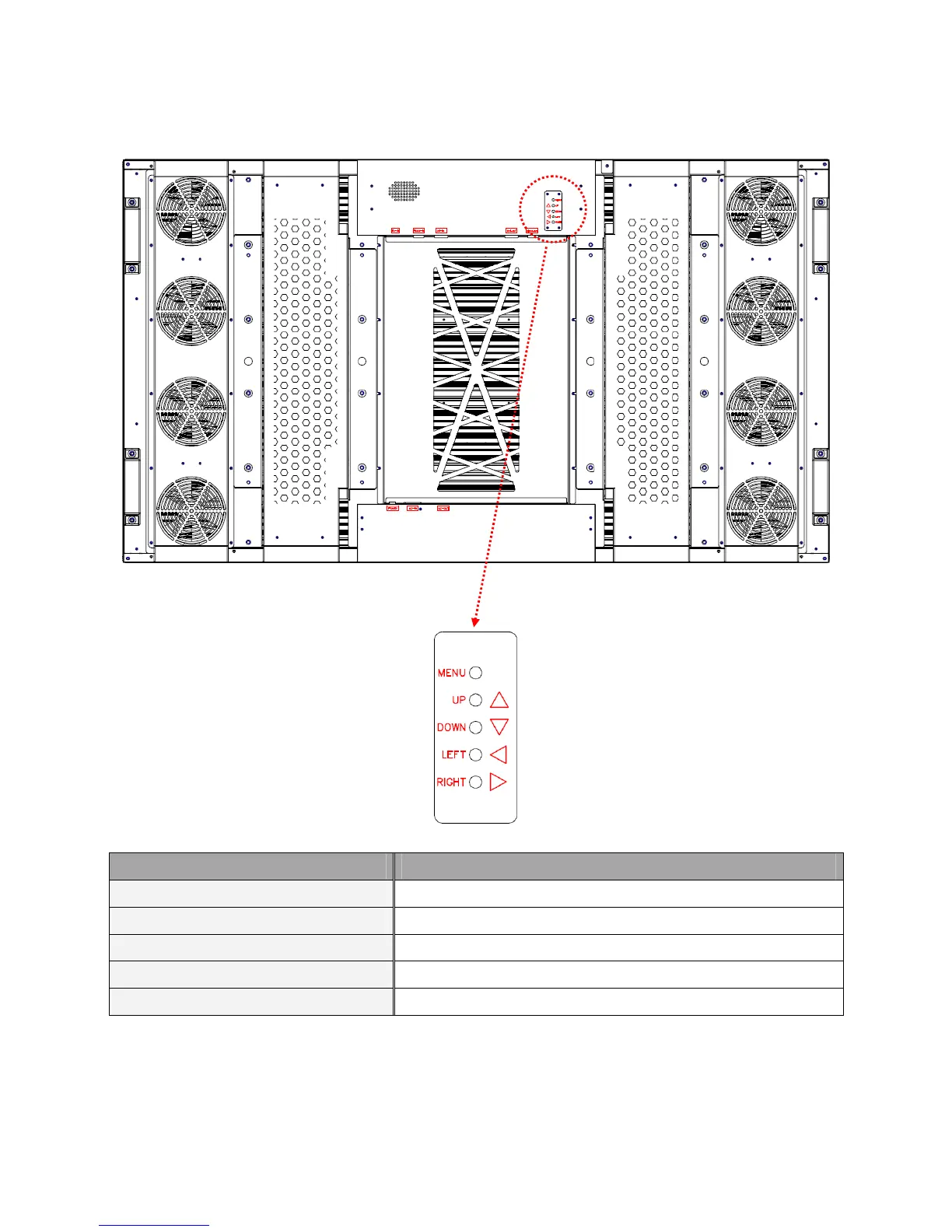

Using the Rear Panel Con
trols
ITEM
DESCRIPTION
MENU
OSD On / Off
, Power On / O
ff
UP
Move the cursor
up or change th
e setting of the s
elected item
DOW
N
Move the cursor
down or c
hange the setting
of the sel
ected item
LEFT
Exit the current s
election
RIGHT
Select the high
lighted item
20
22
Table of Contents
User Manual
1
Table of Contents
2
Safety Precautions
4
Important Safety Information
5
Declaration of Conformity
7
Getting Started
8
Contents
8
Installing and Replacing Remote Control Batteries
9
Installation
10
Mounting
10
Connecting to a Power Source
14
Connecting an External Video Source
14
Connecting Multiple Displays for Video Wall Applications
15
Connector Positions
16
Input / Output Terminals
17
Operating Instructions
18
Powering On/Off the Display
18
Using the Remote Control
18
Using the Rear Panel Controls
21
Navigating the on Screen Display (OSD) Menu
22
Specifications
25
Input Mode
26
Pin Assignments
27
Digital RGB Output (DVI-D): DVI
27
DS551LT7 User Manual
27
Digital RGB Input (DVI-D): DVI
27
RS-232 Output
28
RS-232 Input
28
Troubleshooting
29
Recycling and Energy Information
30
Material Contents Declaration
31
Limited Warranty
32
