Assembly
7
3

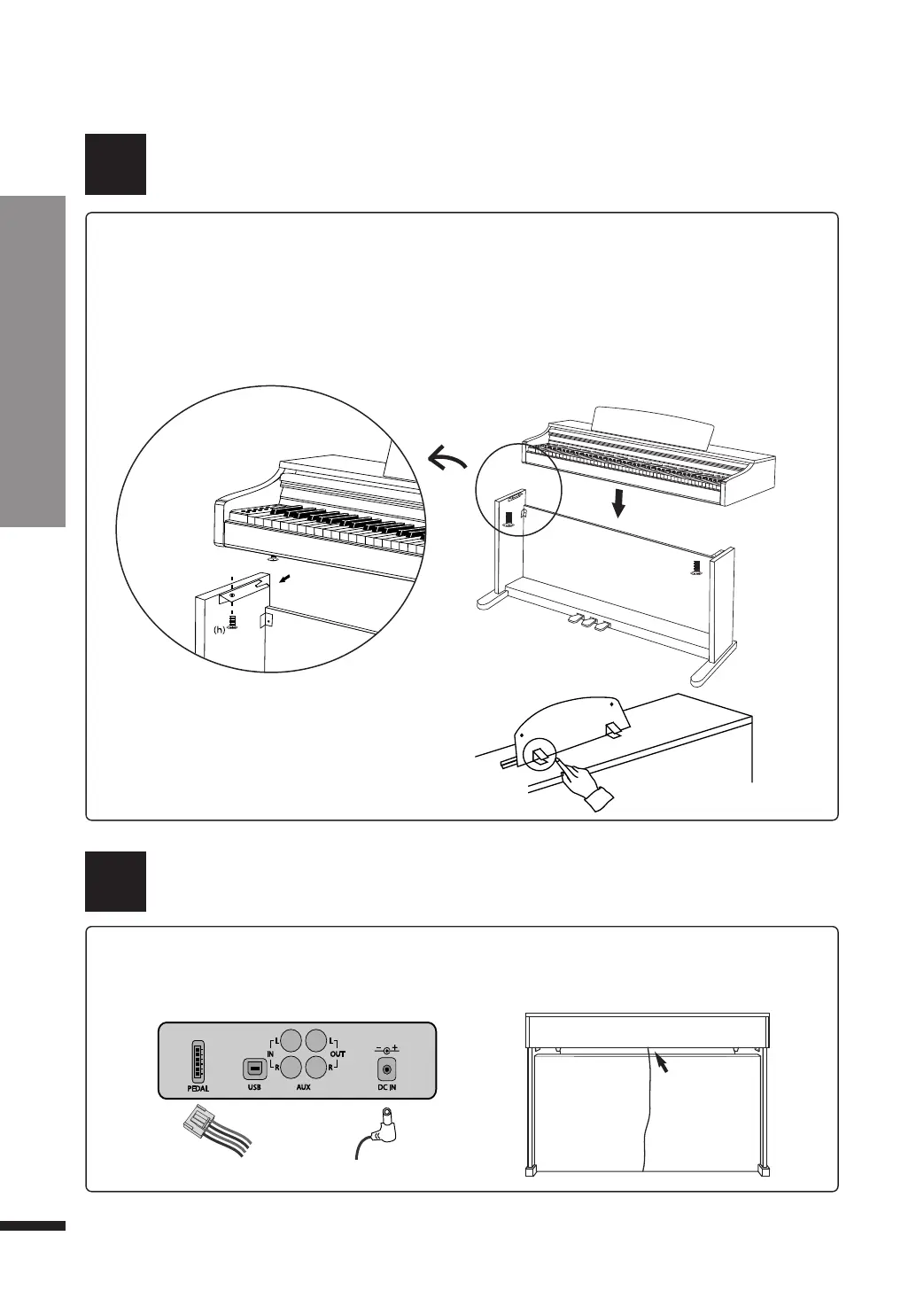

Assembling the main unit
4 Raise the scoreboard on the top of the main
unit and use the brackets on its back to keep it
standing.
1 Connect the pedal cable from the pedals to the pedal jack beneath the main unit. The pedal
cable is tied below the pedal box.
1 Place the main unit onto the assembled lower body by pushing it from behind so that the
screws (2EA) fixed under the main unit would fit into the rear holes of the brackets attached to the
legs.
2 Use main body fixers (h) on the other holes of the brackets to secure the connection between
the bodies.
3 Firmly tighten all 4 screws to finish the assembly.
Pedal & Power terminals
Connecting the pedal & power cables
4
