Dynaudio Sub 3 User Manual

17
Damage of device due to improper
connection
Set the mains power switch to OFF
before connecting the Sub3.
Only switch the subwoofer on
(mains power switch to ON) after all
connections and set up steps have
been properly completed.
Note
All Sub3 inputs and outputs are low level terminals. Thus, neither a power
amplifier output must be connected to the subwoofer nor passive loudspeakers
can be driven by the subwoofer directly!

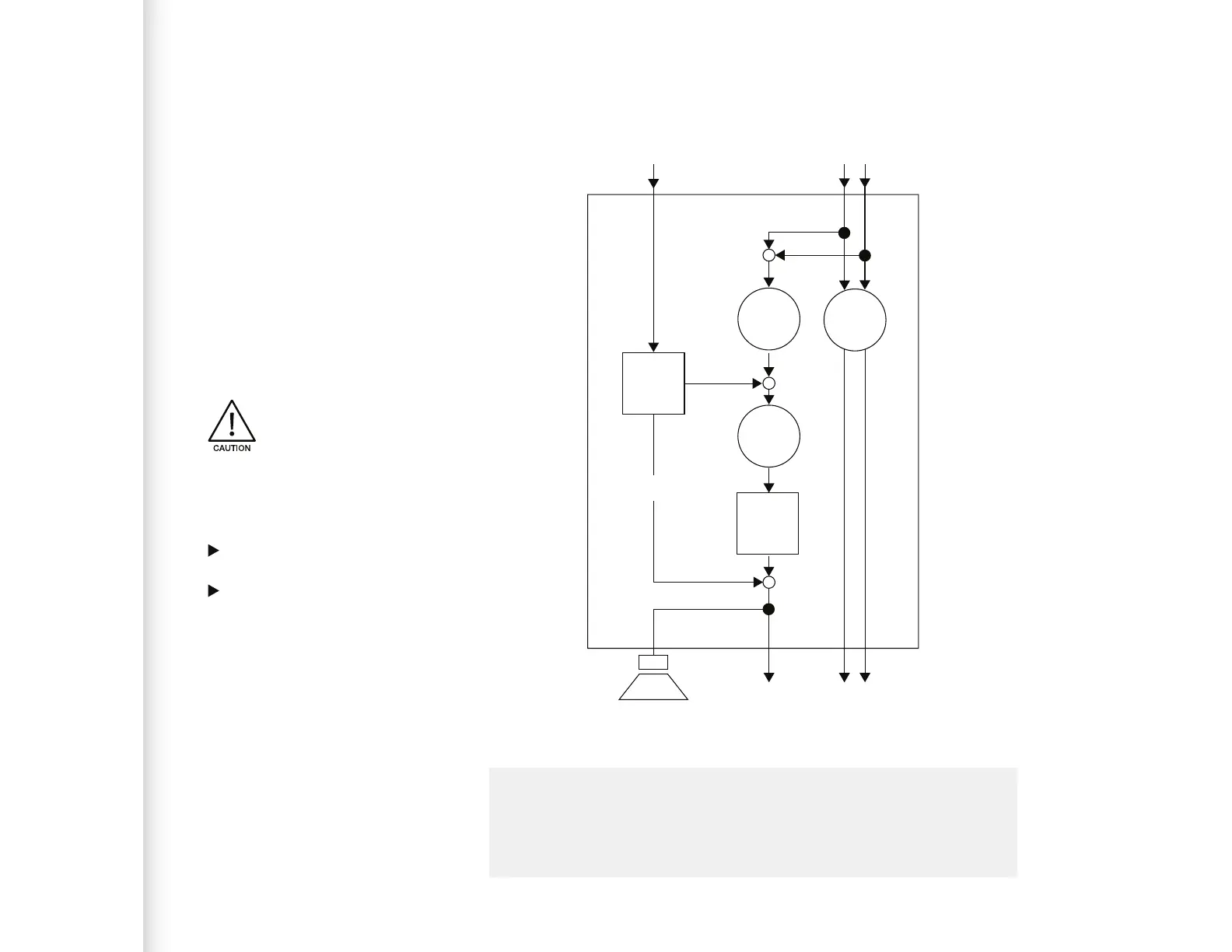

Operation
SAT
Highpass
SUB
Lowpass
+
Gain
LFE
Slave
+
SUB I/O
LFE/Slave In
Mode
Phase
+
SAT/SUB
Input
SAT/SUB
Output
SUB I/O
to slaveSubwoofer
NOTICE

Dynaudio Sub 3 Specifications

General

On/off switch	Yes
Product color	Black
AC input voltage	100 - 240 V
Power source type	AC
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.5 W
Subwoofer type	Active subwoofer
Number of subwoofers	1
Subwoofer peak power	300 W
Subwoofer driver diameter	240 mm
Subwoofer frequency range	22 - 175 Hz
Subwoofer crossover frequencies	60 - 80 Hz
Line inputs (RCA)	3

Weight and Dimensions

Subwoofer depth	320 mm
Subwoofer width	266 mm
Subwoofer height	276 mm
Subwoofer weight	10500 g
