Powerbox Pro series User Manual
21

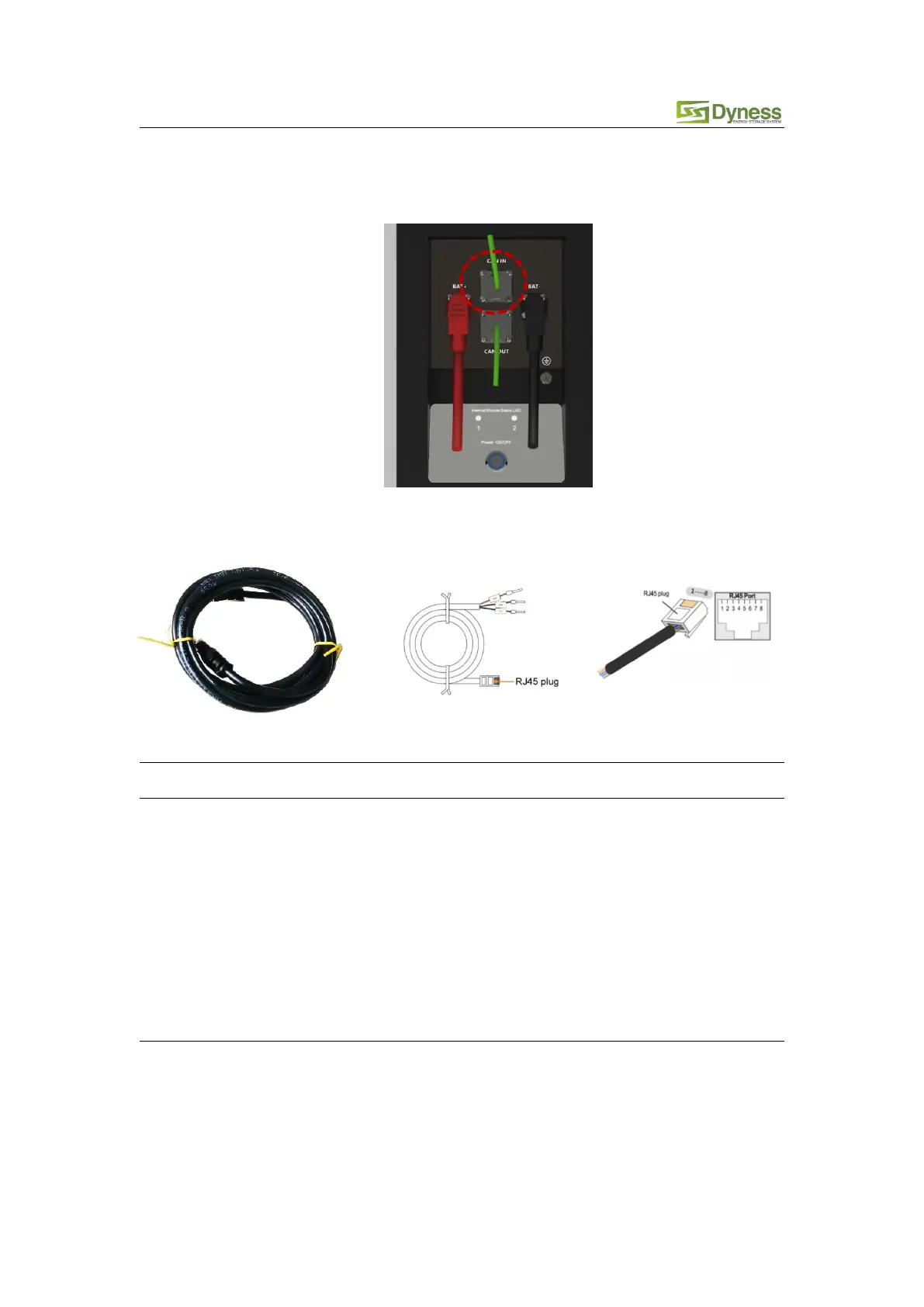

Connection of Communication interface. Connect the CAN IN port of the battery to
the CAN or RS485 communication interface of the inverter using the RJ45 cable.
Table 3-3 Pin Definition
Foot position
Color
Definition
PIN1
Orange/white
485B
PIN2
Orange
485A
PIN3
Green/white
XGND
PIN4
Blue
CANH
PIN5
Blue/white
CANL
PIN6
Green
Reserved
PIN7
Brown/white
XIN
PIN8
Brown
Reserved
