Tower ESS User Manual
©Dyness reserves the copyright of this document.
11

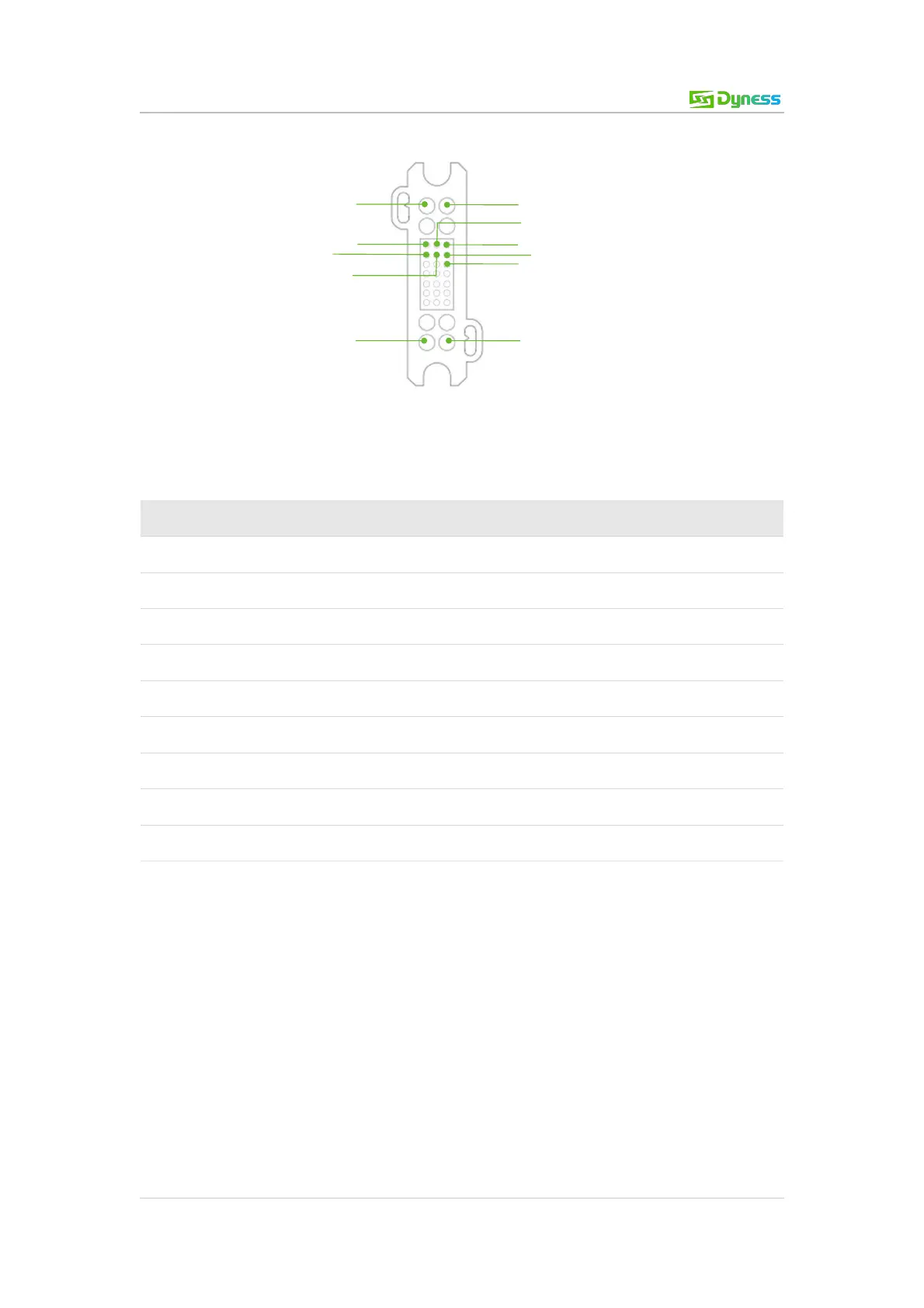

Figure 2-6 Composite Connector-Socket
Table 2-4 Port definition
No.
Composite connector - Plug
Composite connector - Socket
1
Negative output
Negative output
2
Module positive
Module negative
3
SWAKE
SWAKE
4
SCANSG
SCANSG
5
SCANL
SCANL
6
SCANH
SCANH
7
24V-
24V-
8
24V+
24V+
9
SCANIN
SCANOUT
1
1
2
2
3
4
5
6
7
8
9
