Dyson DC24 Service Manual

Fitting notes
Service manual
08

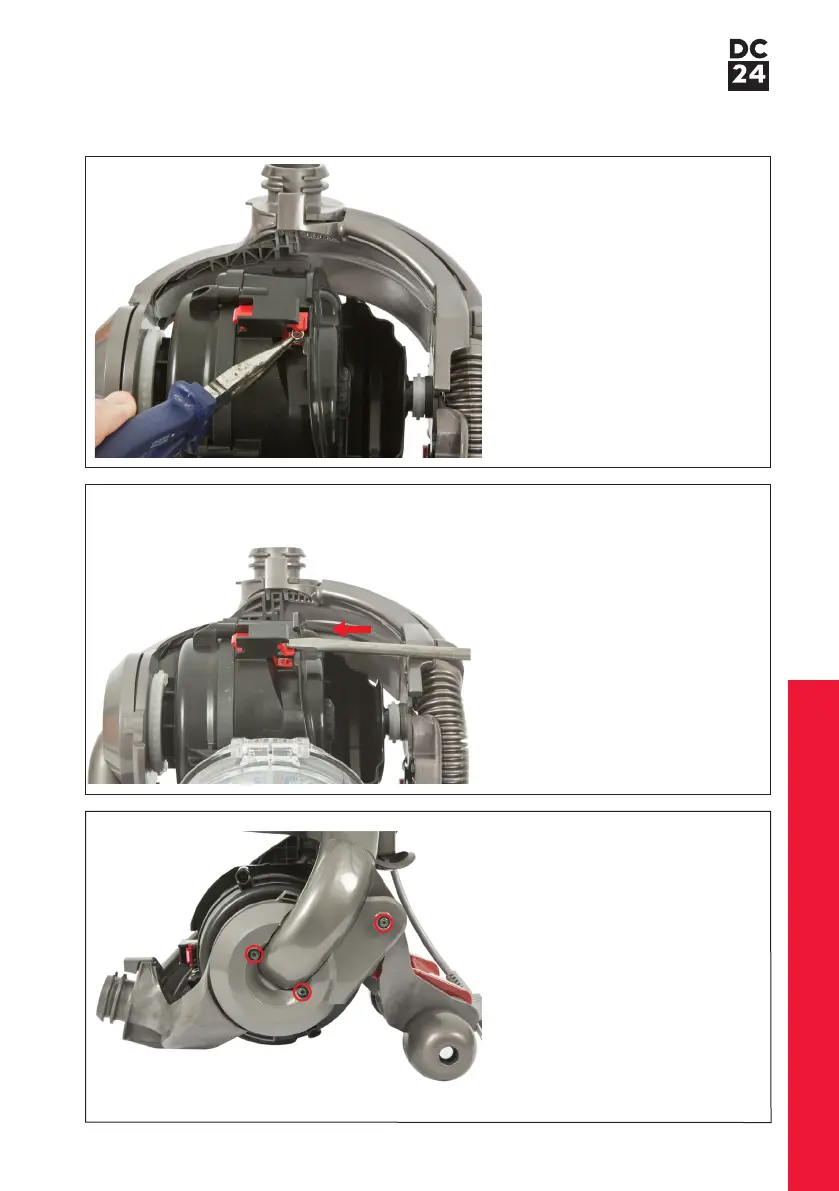

08 If the post filter offering arm needs
replacing carefully release the
spring.
09 With the spring removed firmly
push the post filter offering arm
out of the housing on the motor
bucket.
Fit in reverse.
10 Remove the three long screws in
the upright switch cover.

Dyson DC24 Specifications

General

Type	Upright
Weight	5.4 kg
Cleaner Head	Motorized brush bar
Cyclone Technology	Root Cyclone™ technology
Color	Yellow
Dust Capacity	0.34 L
Special Features	Ball technology
Filter	Lifetime washable filter
