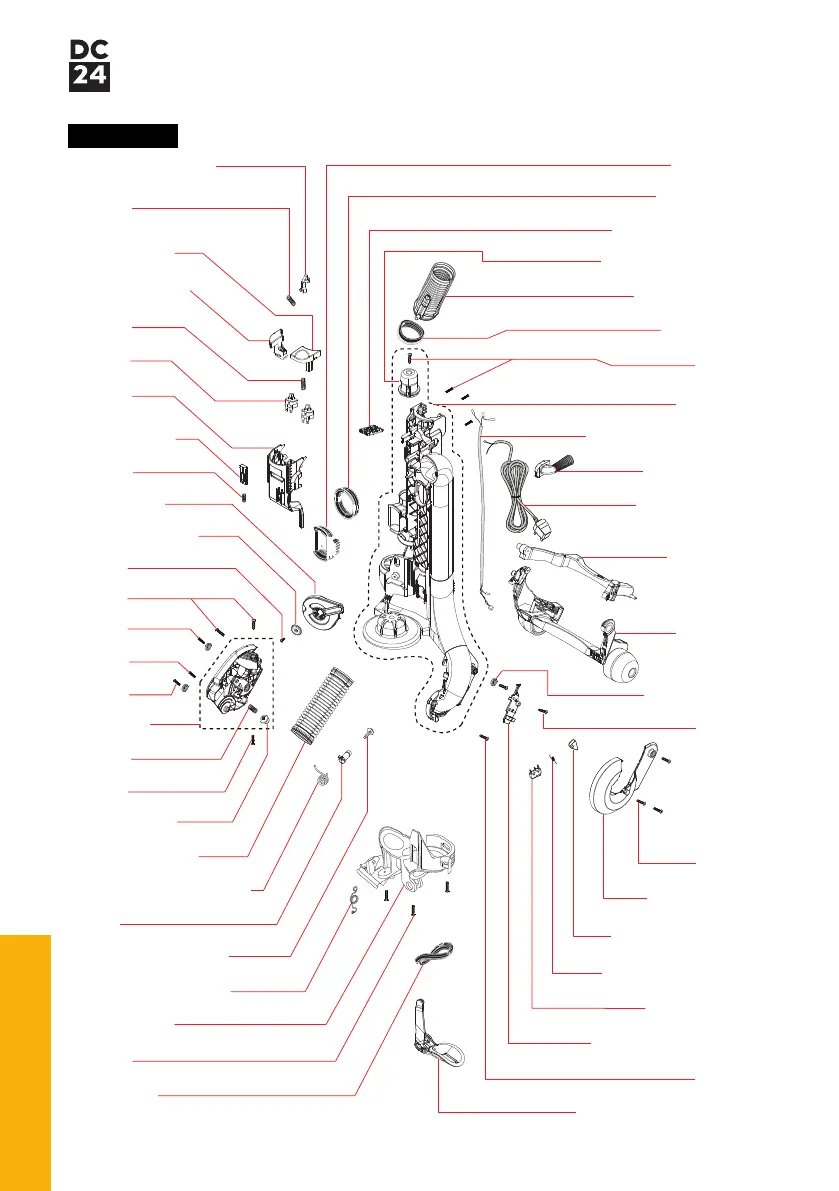

Parts recognition
Service manual
Main body
On/Off Button
Brushbar Reset Arm
Combination Tool Clip
Valve Hose Assy
Shuttle Seal
Entry Seal
Exhaust Seal
Connection Insulator
Brushbar Button
Spring
Cable Protector
Switch
Cover
Switch
Powercord Assy
Valve Wheel
Valve Wheel Cap
Upright
Lock Assy
Pedal Plunger
Lower Duct Hose
Change Over Valve Spring
Axle
Screw/Captive Washer
Screw
Plastic Washer
Screw
Change Over Valve Hatch
Upright Switch Housing
Upright Switch
Upright Switch Spring
Upright Switch Cam
Screw
Spring
Spring
Locking Slider
Screw
Screw
Screw
Hatch Seal
Screw
Screw
Spring
Stabiliser Stand Spring
Valve U-Bend
Upright Switch
Cover
Duct Assy
Internal Powercord Assy
Pedal Assy
Stabiliser
Assy
Screw
Screw
Screw
69
