Dyson DC24 Service Manual

Fitting notes
Service manual
63

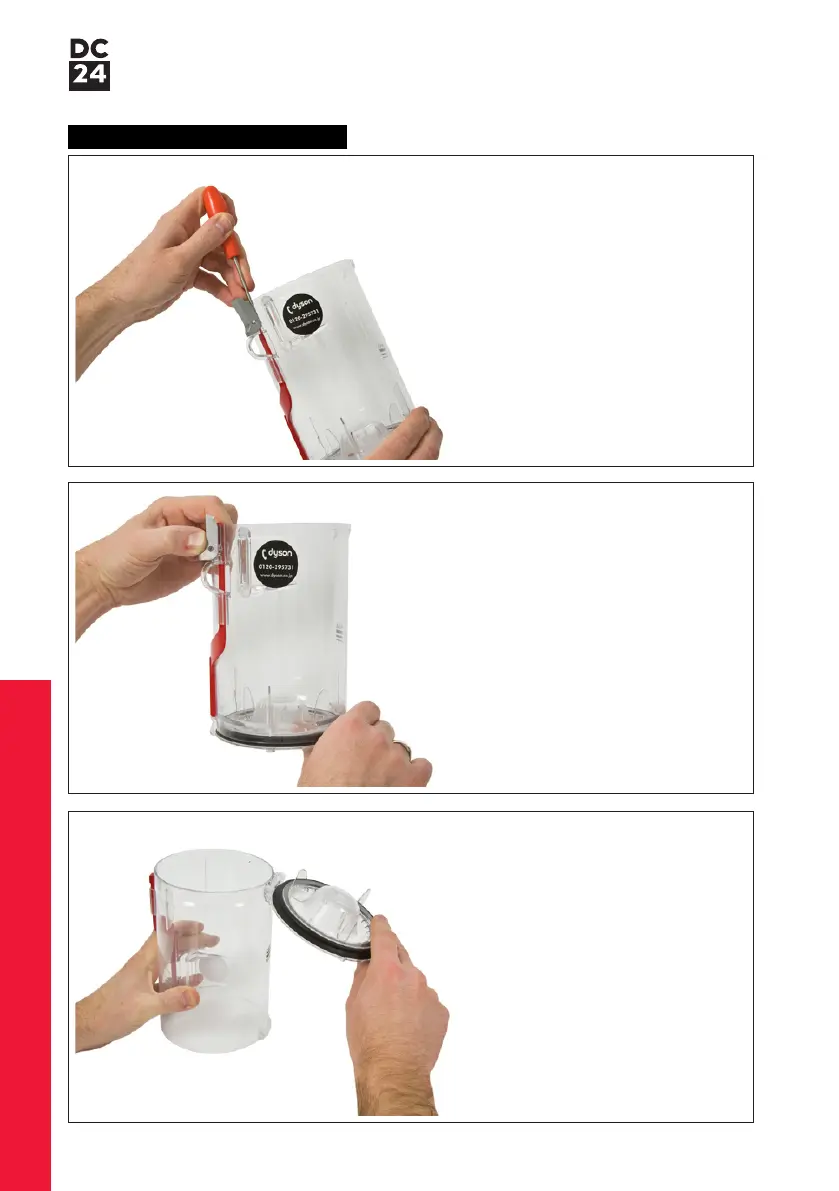

152 The bin catch can be replaced by
prising off from the lugs on the
bin.
154 The bin base assembly can be
firmly prised off the base of the
bin.
153 To fit, press firmly onto the lugs
ensuring the spring locates onto
the retainers.
Sub assemblies-bin assembly

Dyson DC24 Specifications

General

Type	Upright
Weight	5.4 kg
Cleaner Head	Motorized brush bar
Cyclone Technology	Root Cyclone™ technology
Color	Yellow
Dust Capacity	0.34 L
Special Features	Ball technology
Filter	Lifetime washable filter
