Dyson DC24 Service Manual

Fitting notes
Service manual
39

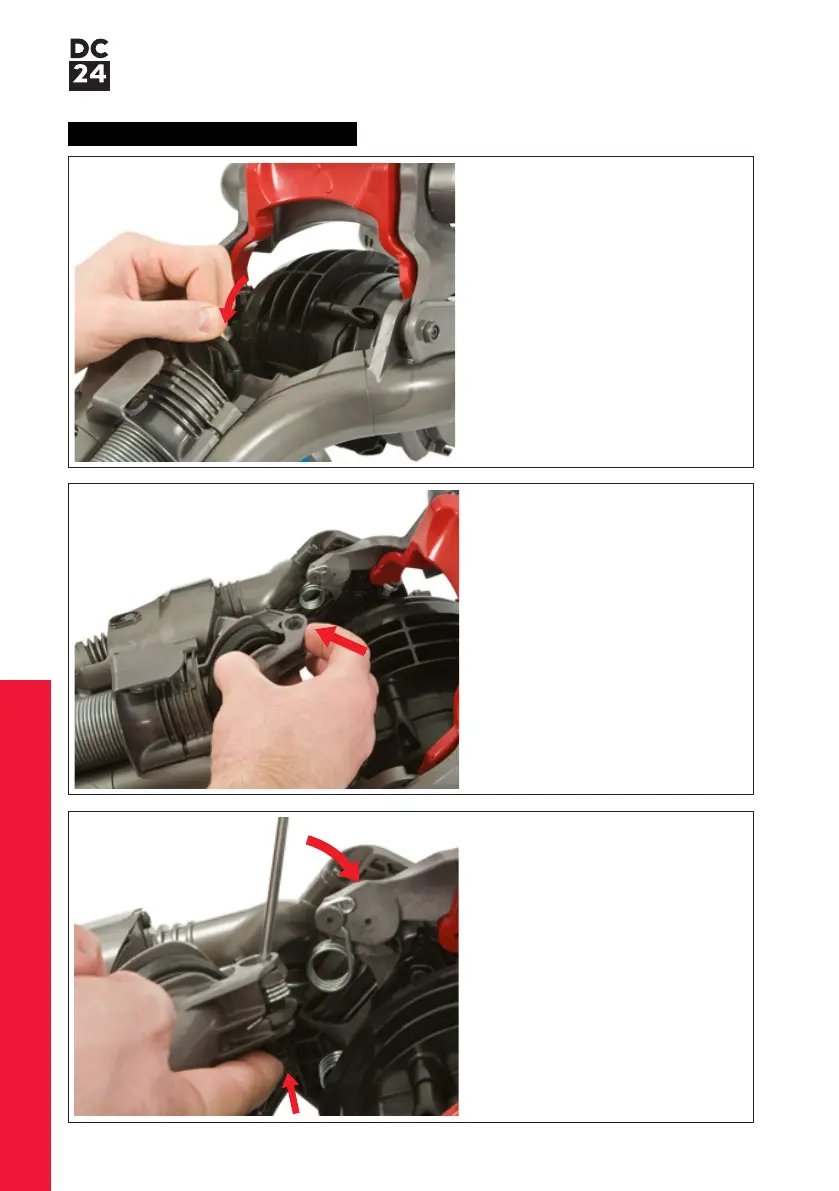

95 Fit the Valve hatch over the lugs
on the valve.
96 Locate the legs of the spring into
the channels on the hatch and
valve. Using a screwdriver hold
the spring under tension whilst
sliding the axle into position.
Valve hatch replacement-fitting
94 If previously removed fit the valve
hatch seal onto the valve. Ensure
it is adequetly seated.

Dyson DC24 Specifications

General

Type	Upright
Weight	5.4 kg
Cleaner Head	Motorized brush bar
Cyclone Technology	Root Cyclone™ technology
Color	Yellow
Dust Capacity	0.34 L
Special Features	Ball technology
Filter	Lifetime washable filter
