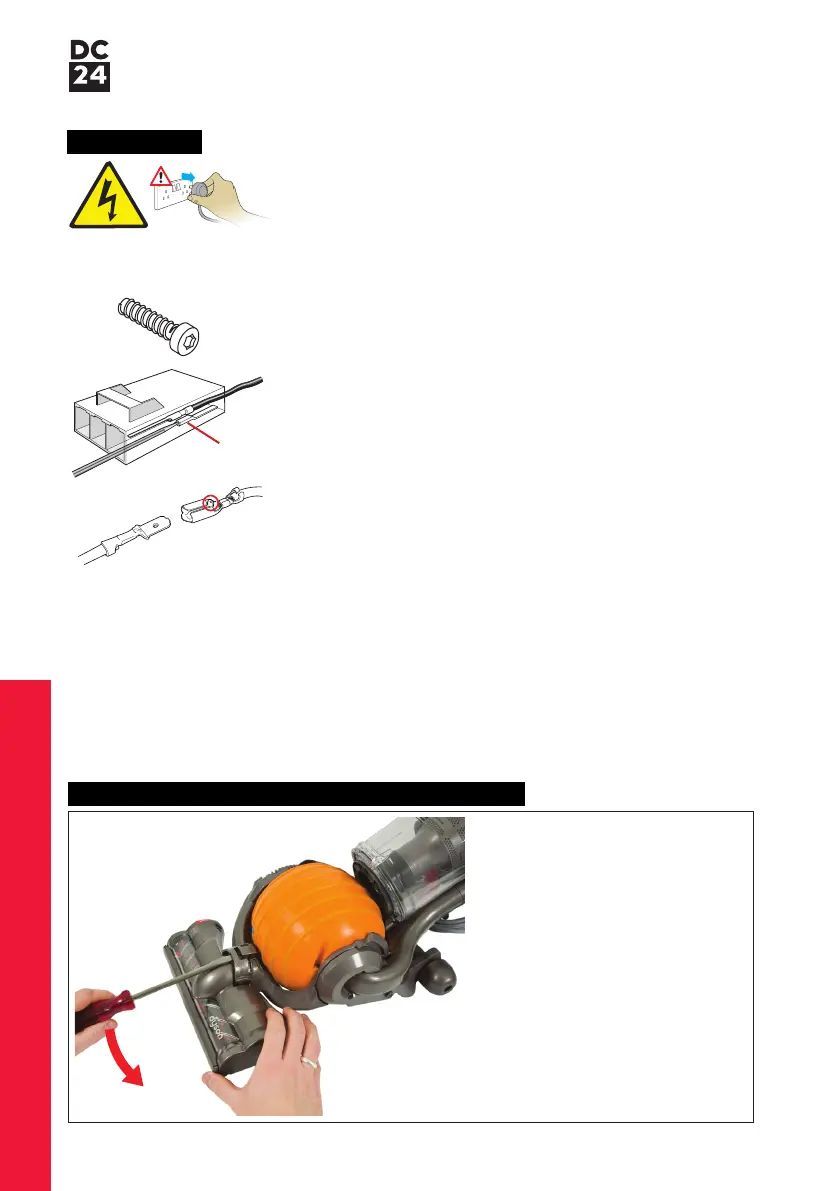

Fitting notes
Service manual
General notes
Disconnect the machine from the electrical outlet at all
times during repair and test. Failure to do so could result
in electric shock or personal injury.
Some female terminal clips used in DC24 contain a locking
mechanism. The release pip will need to be activated before
separation from the male terminal can occur.
DC24 contains a connector behind the upright switch cover.
To disconnect any wires from it you will have to insert a fine
bladed tool (1mm) to activate the release catch.
All screws used in DC24 are Torx T15 unless otherwise stated.
Motor and yoke assembly replacement - removal
Recommended tools to repair DC24:
Torx T-8, T-10, T-15 screwdrivers
Philips screwdriver
Large flat bladed screwdriver
Terminal screwdriver
1mm flat bladed screwdriver
Long/needle nosed pliers
05
01 Release the c-clip from the top
of the cleaner head assembly.
Wire colours may vary between territories.
Release catch
