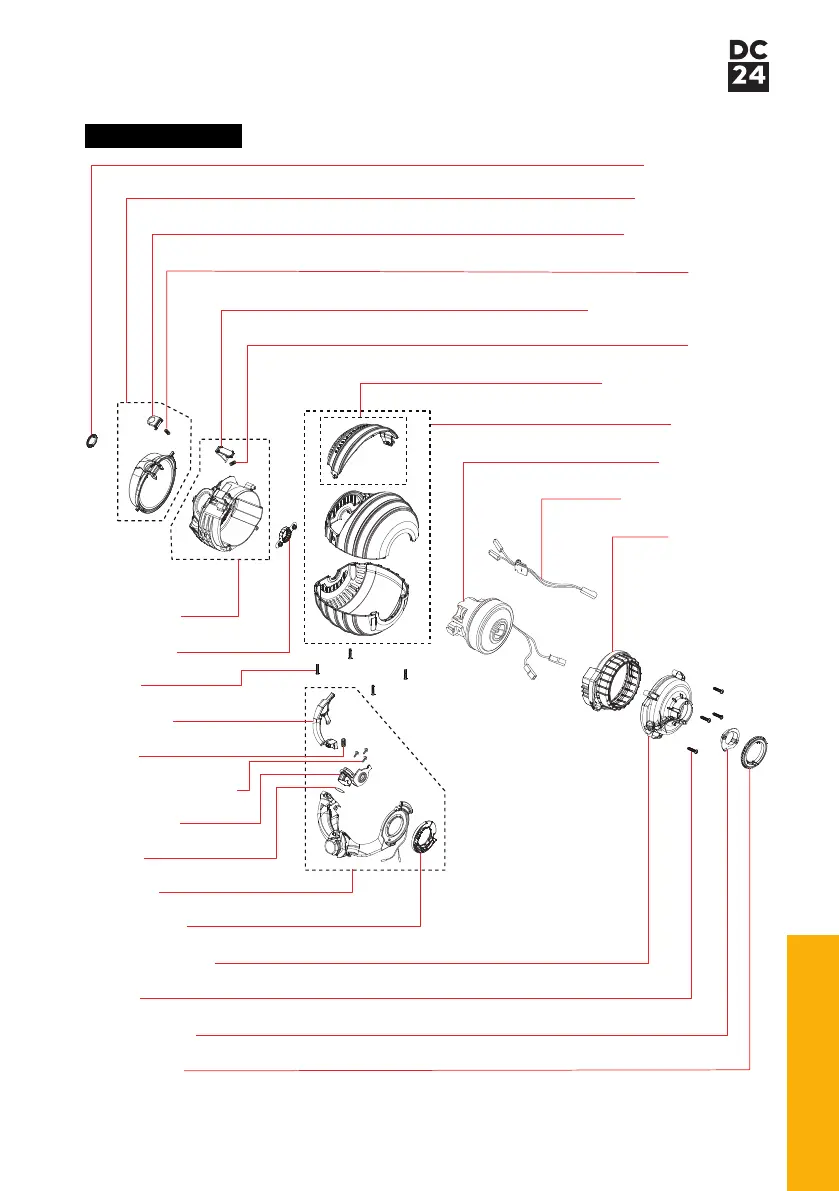

Parts recognition
Service manual
motor assembly
Large Bearing
Small Bearing
Post Filter Button
Spring
Spring
Post Filter Assy
Post Filter Offering Arm
Ball Assy
Motor Assy
Motor Cable Assy
Fancase
Seal YDK
Post Filter Door Assy
Motor Inlet Seal
Front Motor Bucket
Screw
Motor Mount
Rear Motor
Bucket Assy
Swivel Lock
Yoke Bracket
O-Ring
Spring
Connector Clip
Yoke Assy
Screw/Captive Washer
Screw
