Dyson DC24 Service Manual

Fitting notes
Service manual
35

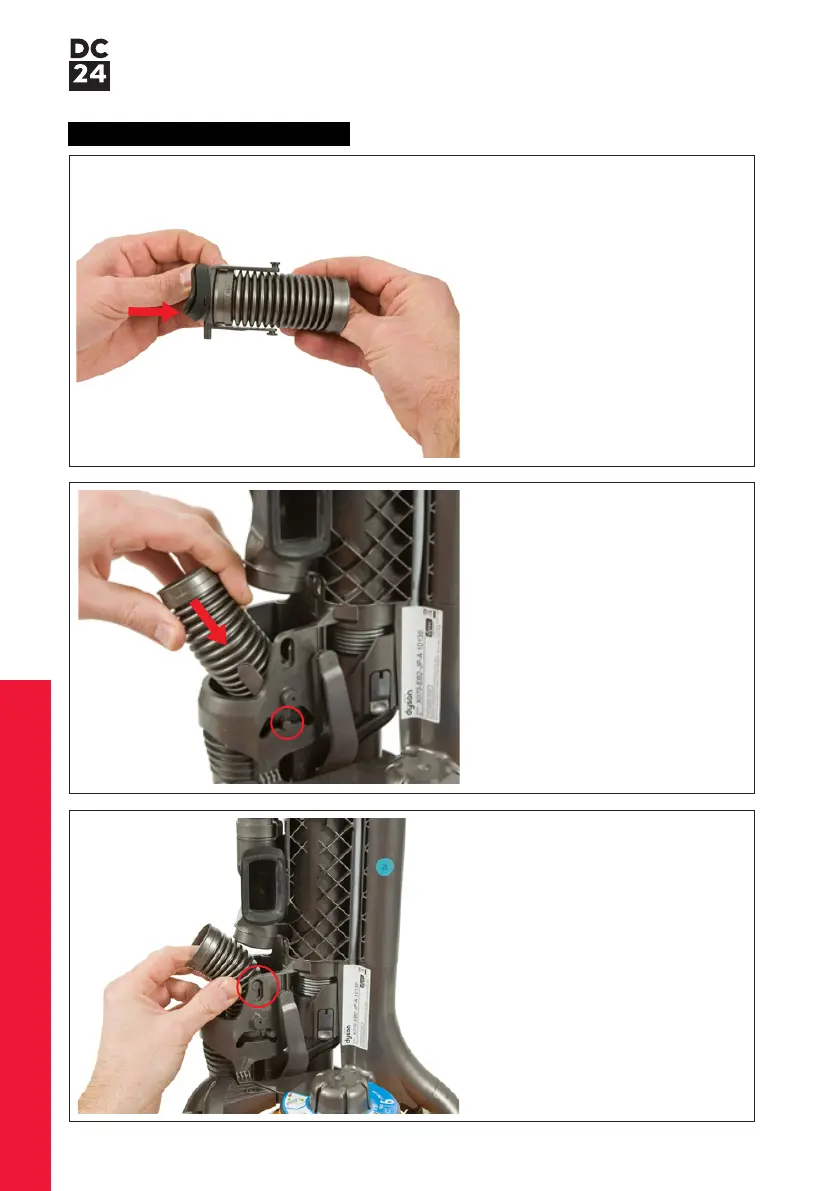

86 Fit the seal ensuring the hole in
the seal fits over the detail on the
shuttle.
87 Lower the hose into the duct
ensuring the pin on the shuttle
locates into the channel.
88 Locate the retaining lugs on either
side of the shuttle into the valve.
Valve hose replacement-fitting

Dyson DC24 Specifications

General

Type	Upright
Weight	5.4 kg
Cleaner Head	Motorized brush bar
Cyclone Technology	Root Cyclone™ technology
Color	Yellow
Dust Capacity	0.34 L
Special Features	Ball technology
Filter	Lifetime washable filter
