Dyson DC24 Service Manual

Fitting notes
Service manual
51

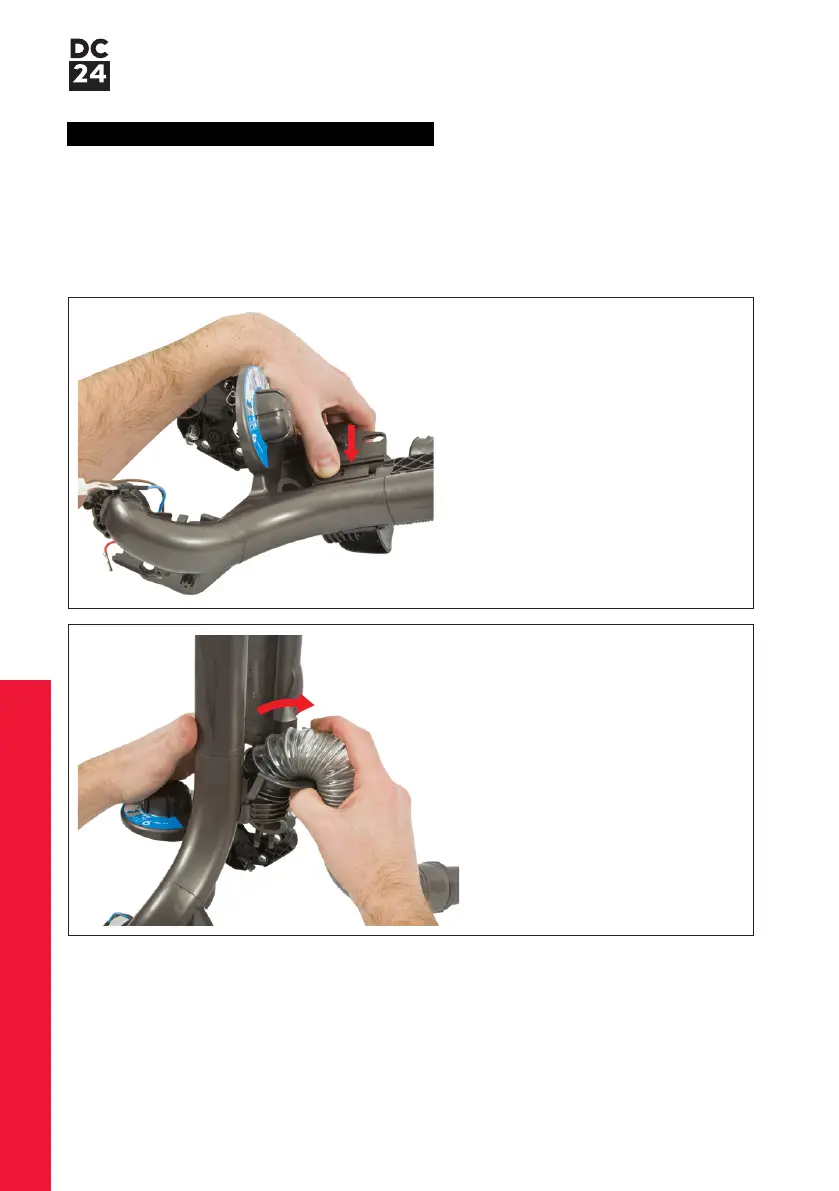

123 The hose can be removed from
the product at any time. If still
present remove it by pressing the
catch on the front of the duct
assembly.
124 And then release it from the rear.
Duct assembly replacement - dismantle
Before continuing the following parts should be removed as previously shown:
Motor and yoke assembly (Pages 5 - 11)
Stabiliser and pedal assembly (Pages 26- 29)
Valve wheel (Page 33)
Valve hose assembly (Page 34)
Valve hatch assembly (Pages 37- 38)
Switch and powercord assembly (Pages 41- 44)

Dyson DC24 Specifications

General

Type	Upright
Weight	5.4 kg
Cleaner Head	Motorized brush bar
Cyclone Technology	Root Cyclone™ technology
Color	Yellow
Dust Capacity	0.34 L
Special Features	Ball technology
Filter	Lifetime washable filter
