Fitting notes
Service manual
52

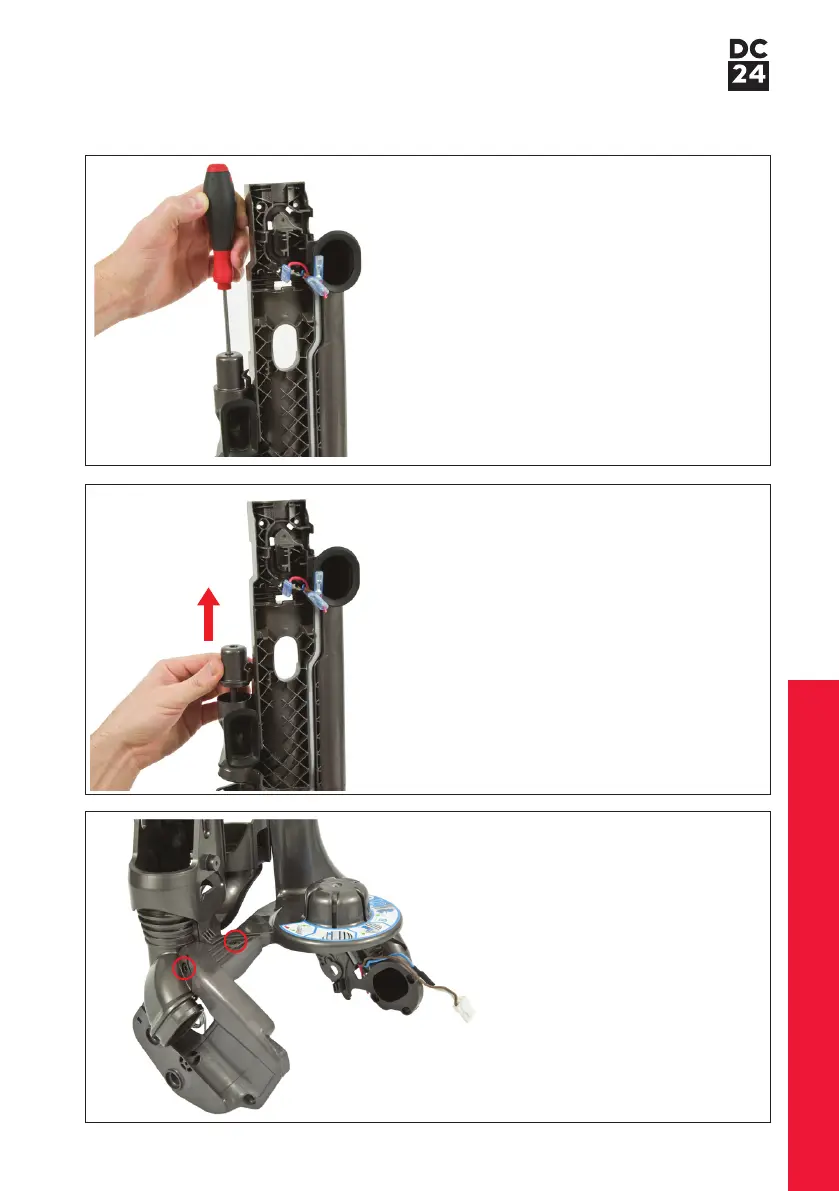

126 And sliding it off the side of the
duct.
Fit in reverse.
127 Undo the two screws shown.
125 The combination tool clip can
also be removed at any stage by
undoing the screw in the centre
of it.
