Dyson DC24 Service Manual

Fitting notes
Service manual
53

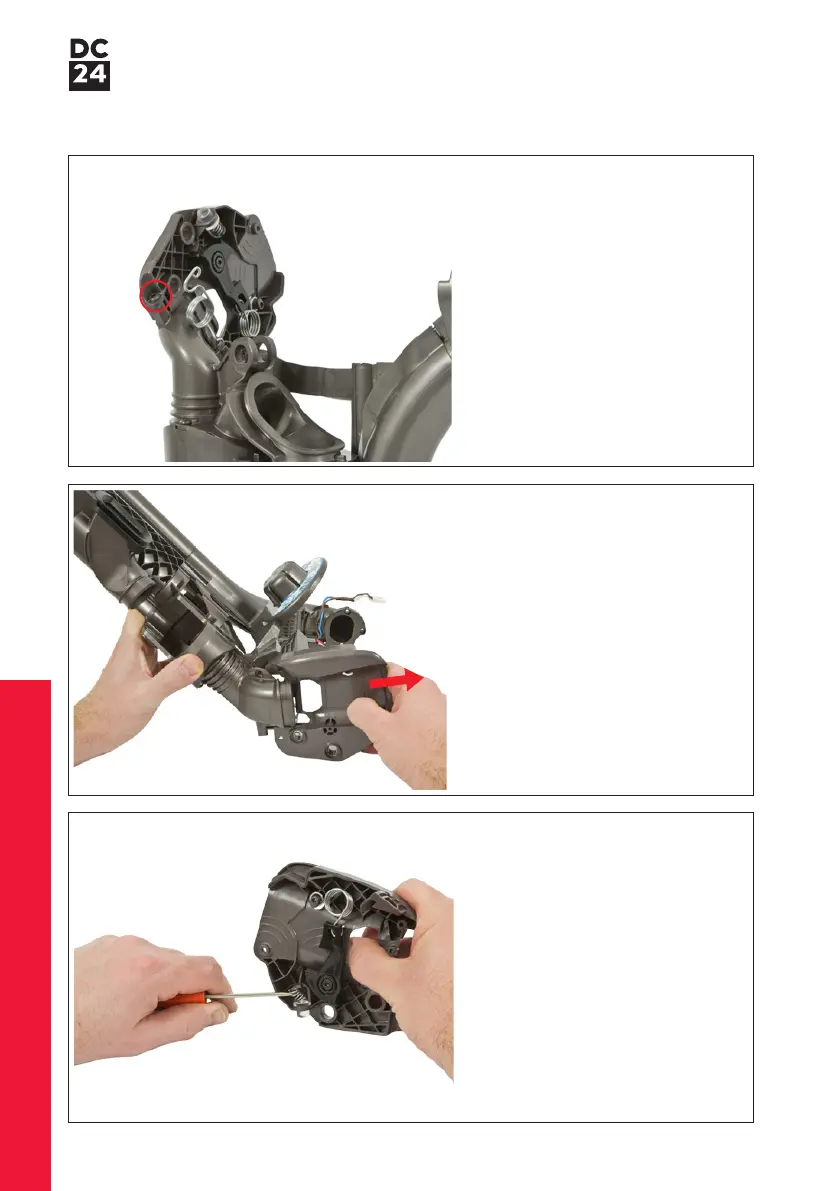

129 With the screws removed slide the
upright lock assembly off the side
of the duct.
130 Should it need replacing the
pedal plunger can be replaced
by carefully detaching the spring
and removing the plunger.
Fit in reverse.
128 Followed by the screw on the
underside of the duct.

Dyson DC24 Specifications

General

Type	Upright
Weight	5.4 kg
Cleaner Head	Motorized brush bar
Cyclone Technology	Root Cyclone™ technology
Color	Yellow
Dust Capacity	0.34 L
Special Features	Ball technology
Filter	Lifetime washable filter
