Fitting notes
Service manual
54

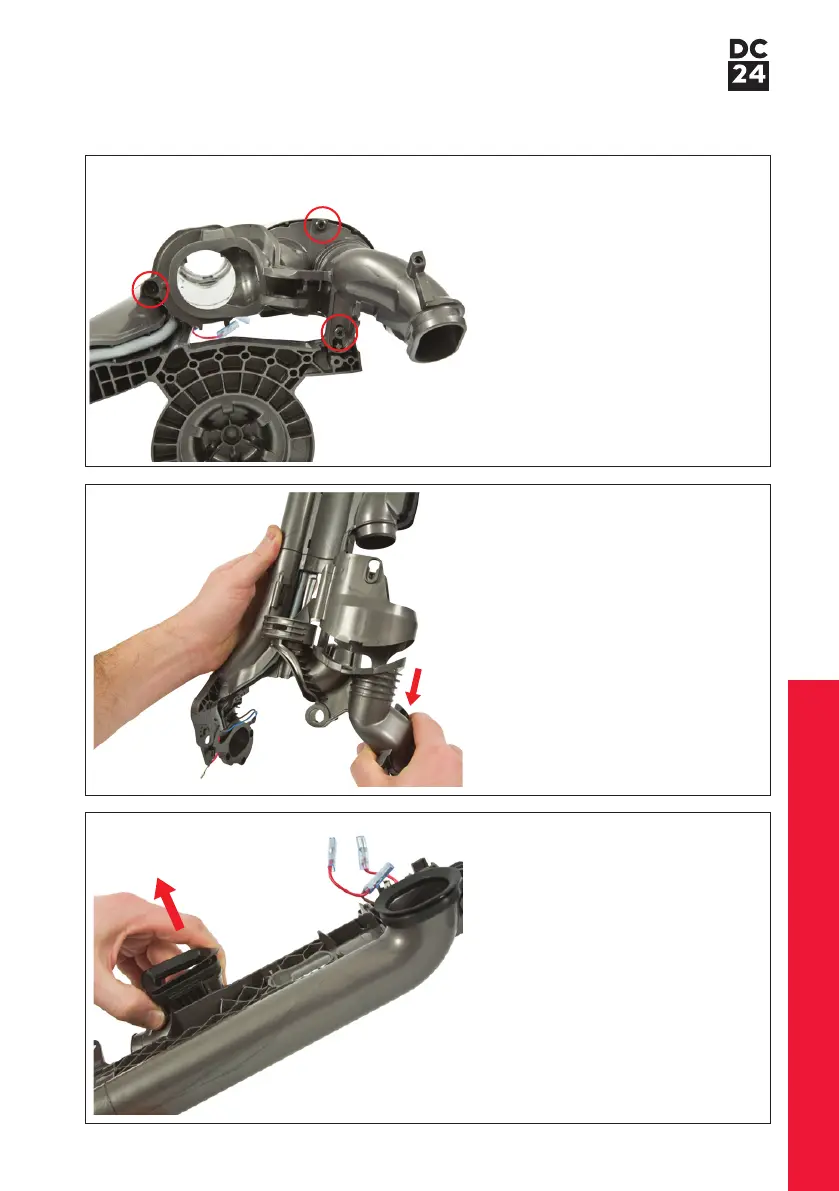

132 Remove the valve U-bend from
the duct assembly.
133 Remove the entry seal from the
duct assembly.
131 Undo the three screws in the
underside of the duct assembly.
