Fitting notes
Service manual
68

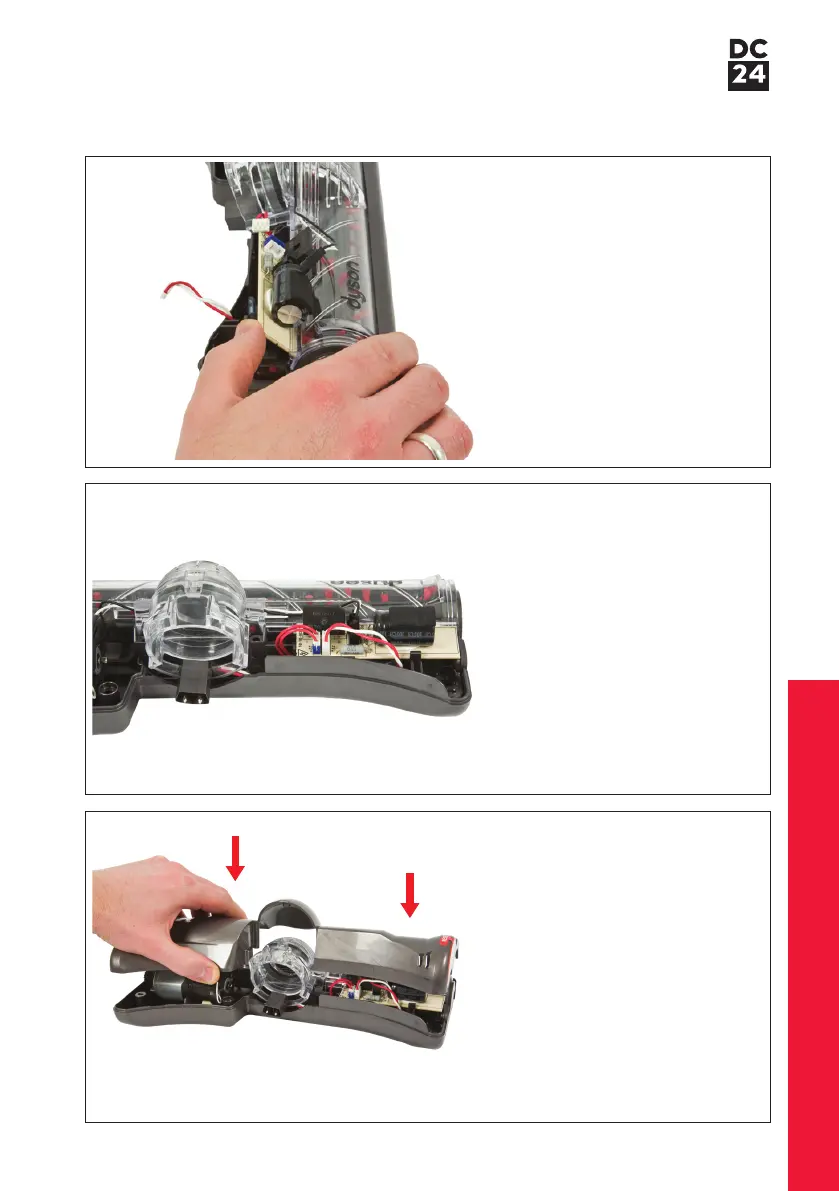

166 Reconnect all wires to the PCB
assembly.
165 To fit locate the front of the
new PCB assembly under the
brush housing and lower under
the retaining catch.
167 Lower the brushbar motor cover
onto the cleaner head assembly.
Fit the nine screws and flicker
strip.
