Dyson DC24 Service Manual

Fitting notes
Service manual
17

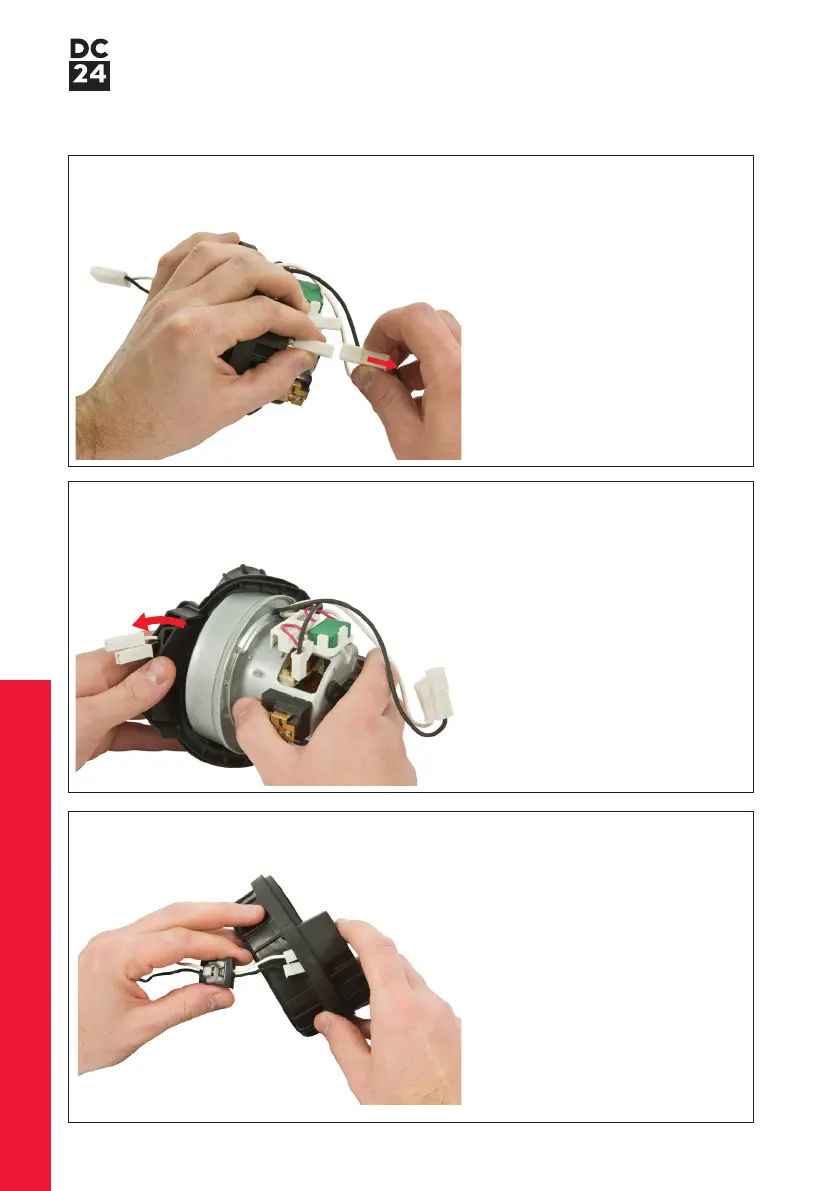

35 Detach the motor wires from the
motor cable assembly.
36 Remove the fancase seal and
motor mount from the motor.
37 Remove the motor cable assembly
from the fancase seal if necessary.

Dyson DC24 Specifications

General

Type	Upright
Weight	5.4 kg
Cleaner Head	Motorized brush bar
Cyclone Technology	Root Cyclone™ technology
Color	Yellow
Dust Capacity	0.34 L
Special Features	Ball technology
Filter	Lifetime washable filter
