Dyson DC24 Service Manual

Fitting notes
Service manual
20

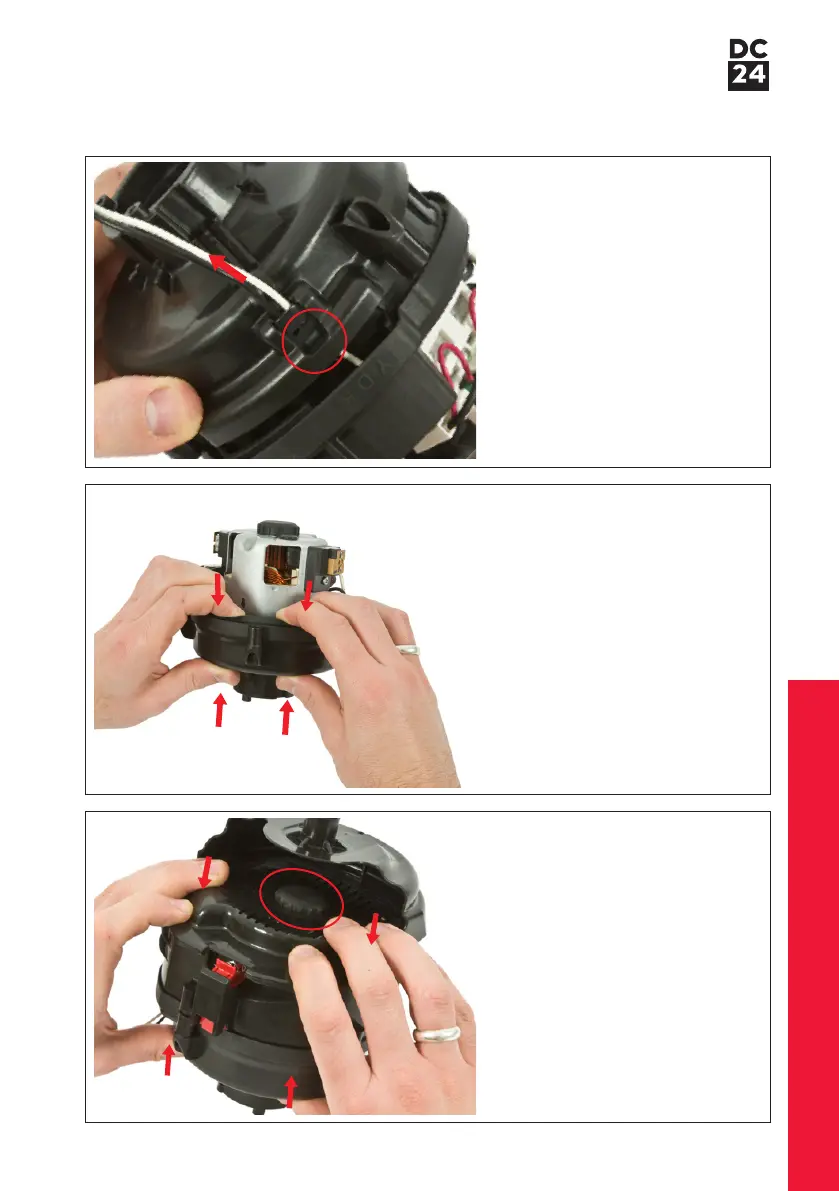

46 Lower the motor bucket rear
assembly onto the motor. Ensure
the motor mount protudes through
the hole in the bucket.
44 Feed the wiring harness through
the opening in the motor bucket
front. Pull the wiring harness
grommet through the opening
ensuring the notch detail catches.
45 Locate the motor bucket front into
the fancase seal.
