Dyson DC24 Service Manual

Fitting notes
Service manual
66

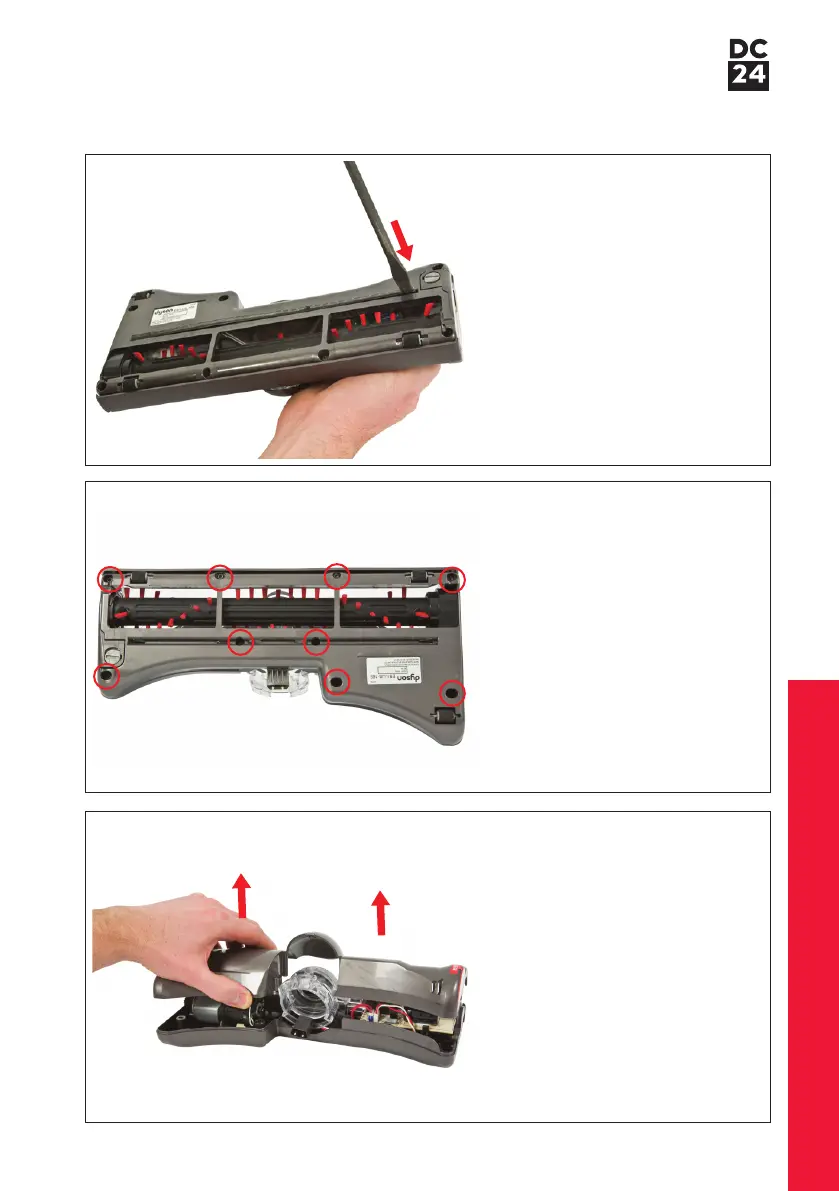

160 To fit, slide along the length of
the soleplate under the retainers.
Press the end under the last
retainer.
161 If the PCB need replacing,
remove the flicker strip and nine
Torx T-10 screws (eight in
Japanese models).
162 With the screws removed, lift the
brushbar motor cover off the
cleaner head.

Dyson DC24 Specifications

General

Type	Upright
Weight	5.4 kg
Cleaner Head	Motorized brush bar
Cyclone Technology	Root Cyclone™ technology
Color	Yellow
Dust Capacity	0.34 L
Special Features	Ball technology
Filter	Lifetime washable filter
