E.C.A. CITIUS PREMIX - Boiler Packaging

6. BOILER PACKAGING
CAUTION: Attention must be paid to warning on packaging regarding handling and
storage.

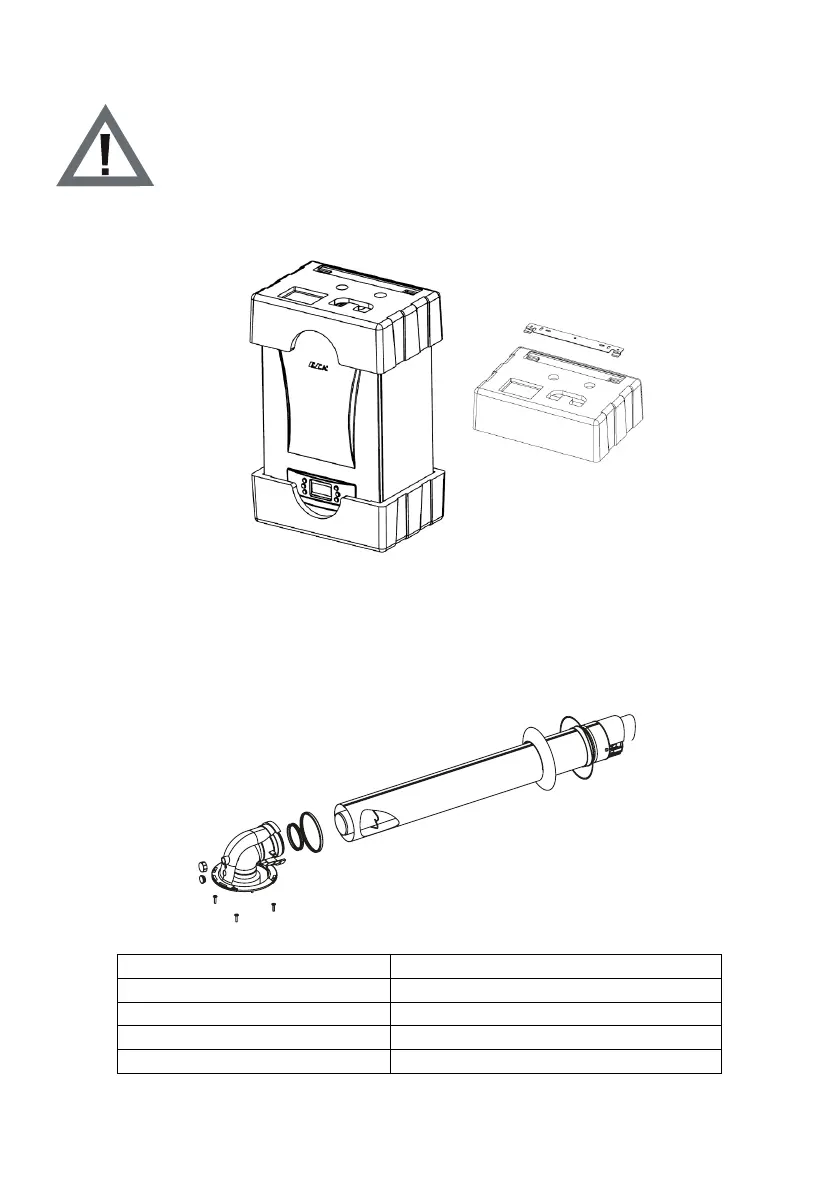

• The device is delivered with a carton board with dimensions of 735 x 345 x 490 (HxWxD) mm,
supported by upper and lower styrofoam.
Figure 4
• Parts required for installation of the device (wall bracket, 5 gaskets for HM and HCH and 6
gaskets for HST water and gas connections, 3 anchors and 3 fixing screws) are placed on the
top styrofoam.
• The hermetic flue set is delivered in a carton box separate from the unit. The standard hermetic
flue set (Ø 60/100 or Ø 80/125) consists of the following components (Figure 5).
Figure 5
1-90
0
C Elbow 6-Flange Screws
2-Exhaust Gas Tap 7-Flange Gaskets
3-Air Inlet Tap 8-Flue Exhaust Terminal
4-Sealing Gasket Ø60 or Ø80 9-Inner Wall Connection Flange
5-Sealing Gasket Ø 100 or Ø125 10-Outer Wall Connection Flange (EPDM)
Table 2
1
7
4
5
8
9
10
6
3
2
12
