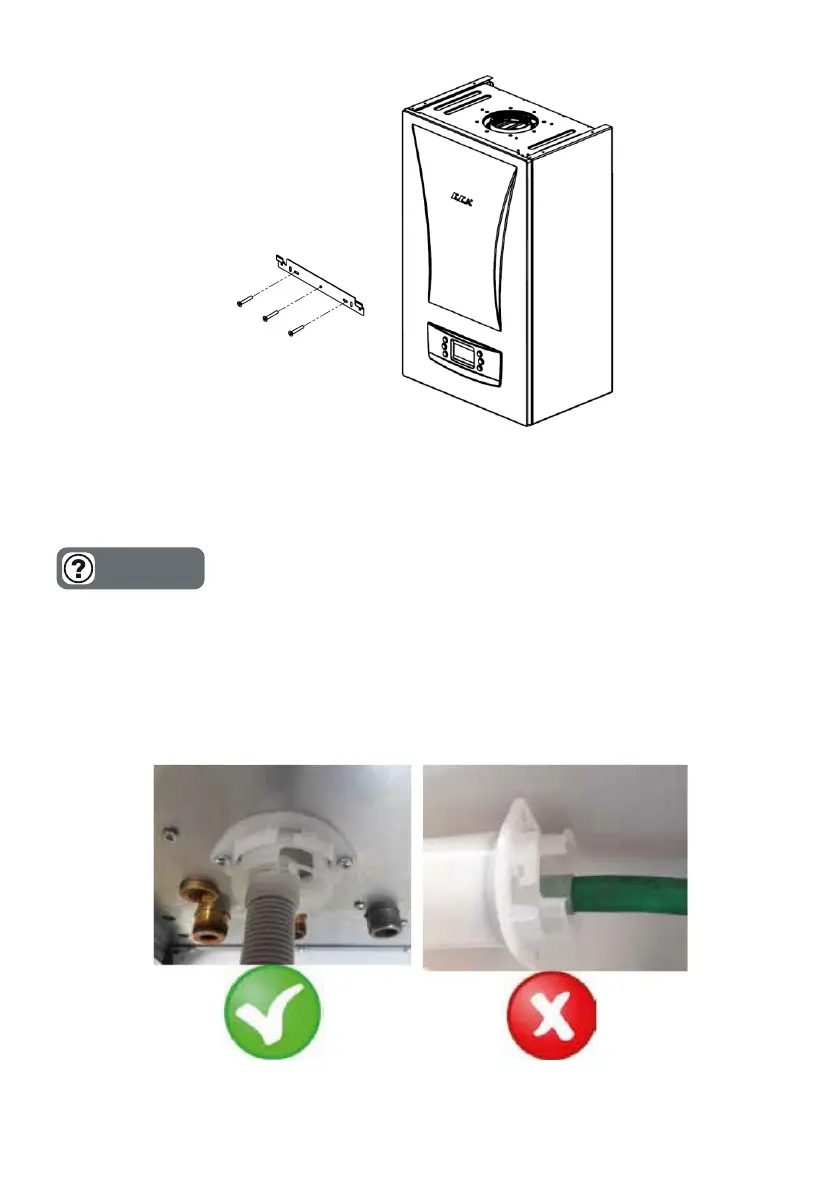

Figure 9
9. CONNECTIONS
9.1. Condensate Discharge Connection
All condensing boilers generate condensing discharge. The amount of the
condensate water depends on the working conditions of your appliance. This can
be up to 1.7 liters condensate water an hour.
Figure 10
INFORMATION
- The condensation water must be connected to a drain with the help of a plastic hose that is connected
to the end of siphon. The use of standard discharge hose is recommended for connection to the
drain.The addition of one cable connection on the hose should be made for fixing.
- If drain hose will be connected to drain outside of the building, insulation should be provided to
prevent freeze of hose.
- The condensate discharge hose and interconnection parts must be made of plastic material.
All horizontal parts must be connected at a slight 2° or 3° downwards incline to ensure to a good flow.
