5.2. Notations of Product
NOTATION DEFINITION
Citius Premix 14/20/24/28 kW HM
Citius Premix Hermetic Monothermic Condensing Boiler
Citius Premix 14/20/24/28 kW HCH
Citius Premix Hermetic Central Heating Condensing Boiler
Citius Premix 14/20/24/28 kW HST
Citius Premix Hermetic Storage Tank Condensing Boiler
Table 1
5.3. Detailed View and List of Components

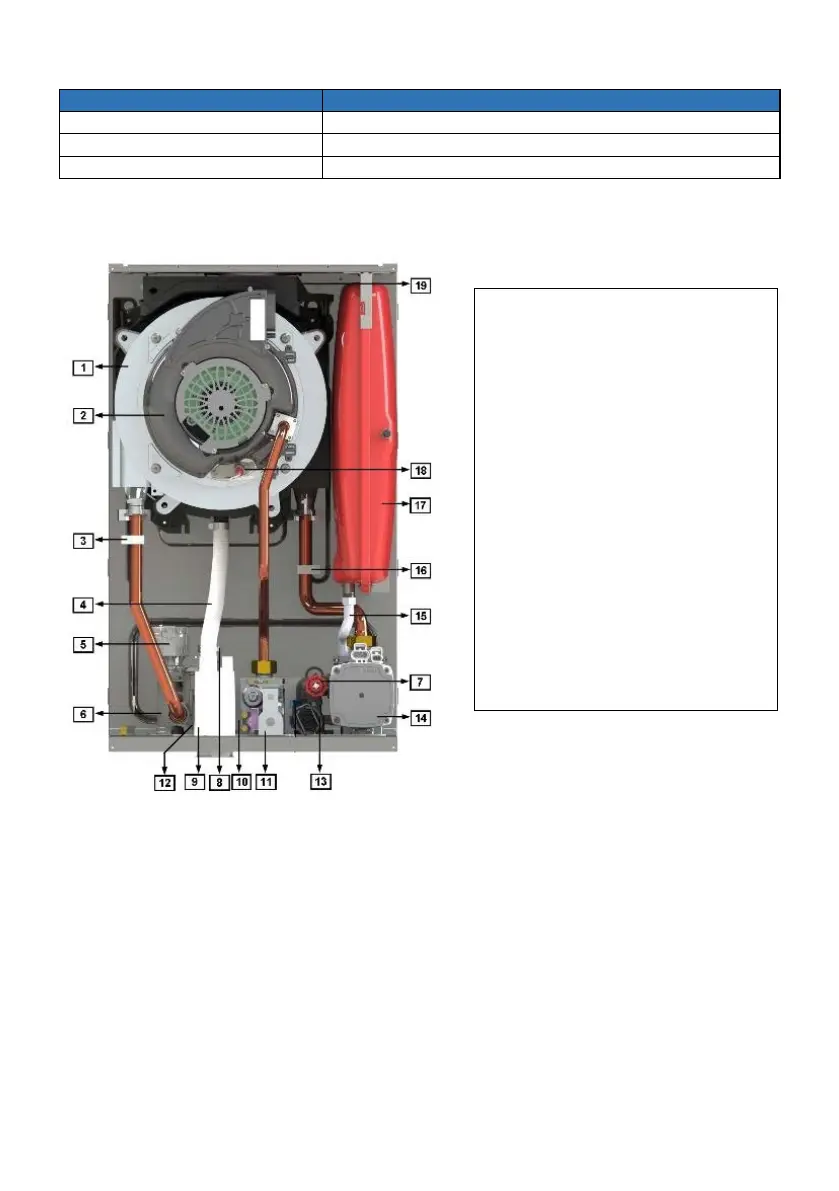

Figure 1.1 Version A*
* Components may be different for some appliance models.
1- Main Exchanger
2- Burner+ Blower
System
3-
Water
Temperature Sensor
for
Supply
4-
Condensing Water Hose
5-
Motorized Valve
6- Outlet Manifold
7- 3 Bar Safety Valve
8- Pressure Sensor
9- Siphon
10- Plated Heat Exchanger
11- Gas Valve
12- DHW Water Temperature Sensor
13- Return Manifold
14- Pump
15- Flexible Connection Hose
16- Water Temperature Sensor for
Return
17- Expansion Tank (8 liters)
18- Ignition Electrode
19- Flue Gas Sensor
