E.C.A. CITIUS PREMIX - Page 7

410 mm
678 mm
288 mm

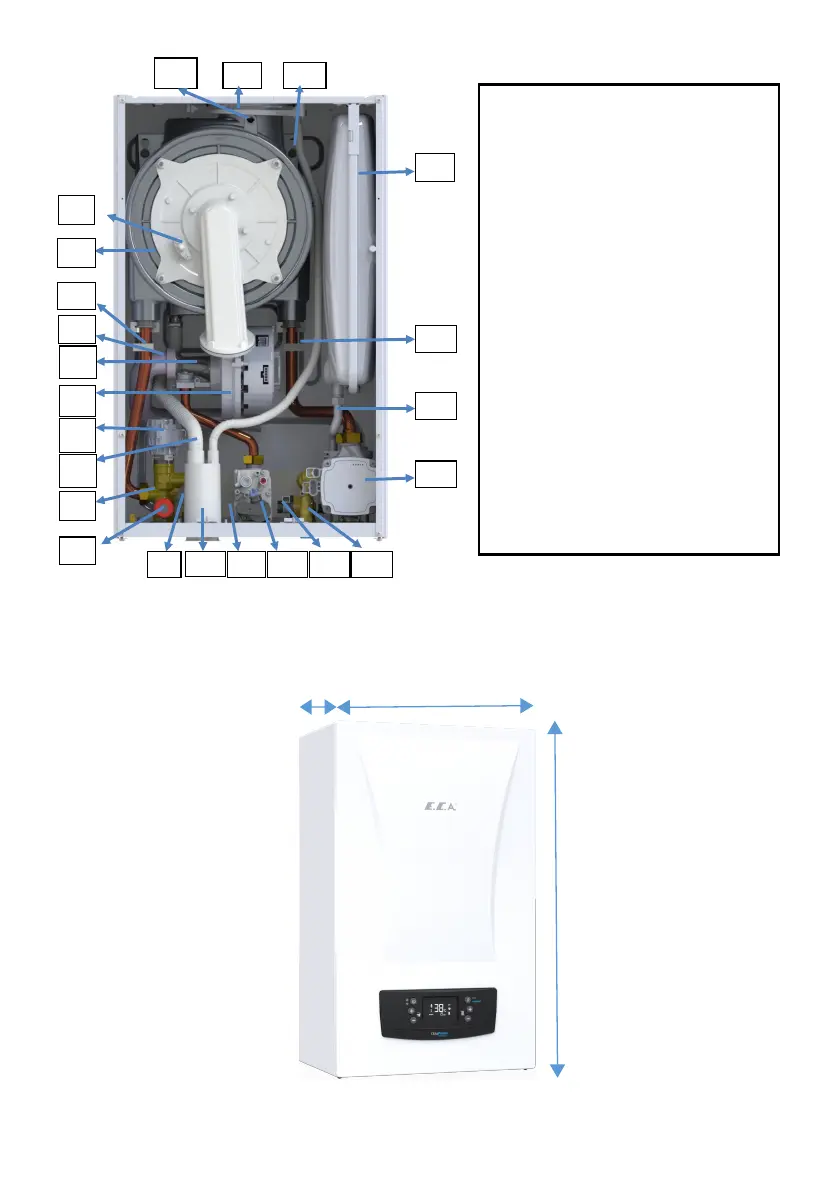

Figure 2.1. Appliance External Dimensions
1- Main Exchanger
2- S
uppressor
3- Venturi
4- Fan
5- Motorized Valve
6- Condensate Hose
7- Flow Manifold
8- 3 Bar Safety Valve
9- Pressure sensor
10- Siphon
11- Plate Heat Exchanger
12- Gas Valve
13- Return Manifold
14- Pump
15- Expansion Tank Hose
16- Expansion Tank (8L)
17- Rainwater Hose
18- Rainwater Collection Container
19- Ignition Electrode
20- Return Water Temperature Sensor
21- Flow Water Temperature Sensor
22- Turbine
23- Flue Gas Sensor
18 17
8
7
6
5
4
3
2
16
1
11
12 13
14
15
9
10
19
20
21
22
23
Figure 1.2. Version B *
* Components may be different for some appliance models.
