7.3. Distances for Placement of Flues

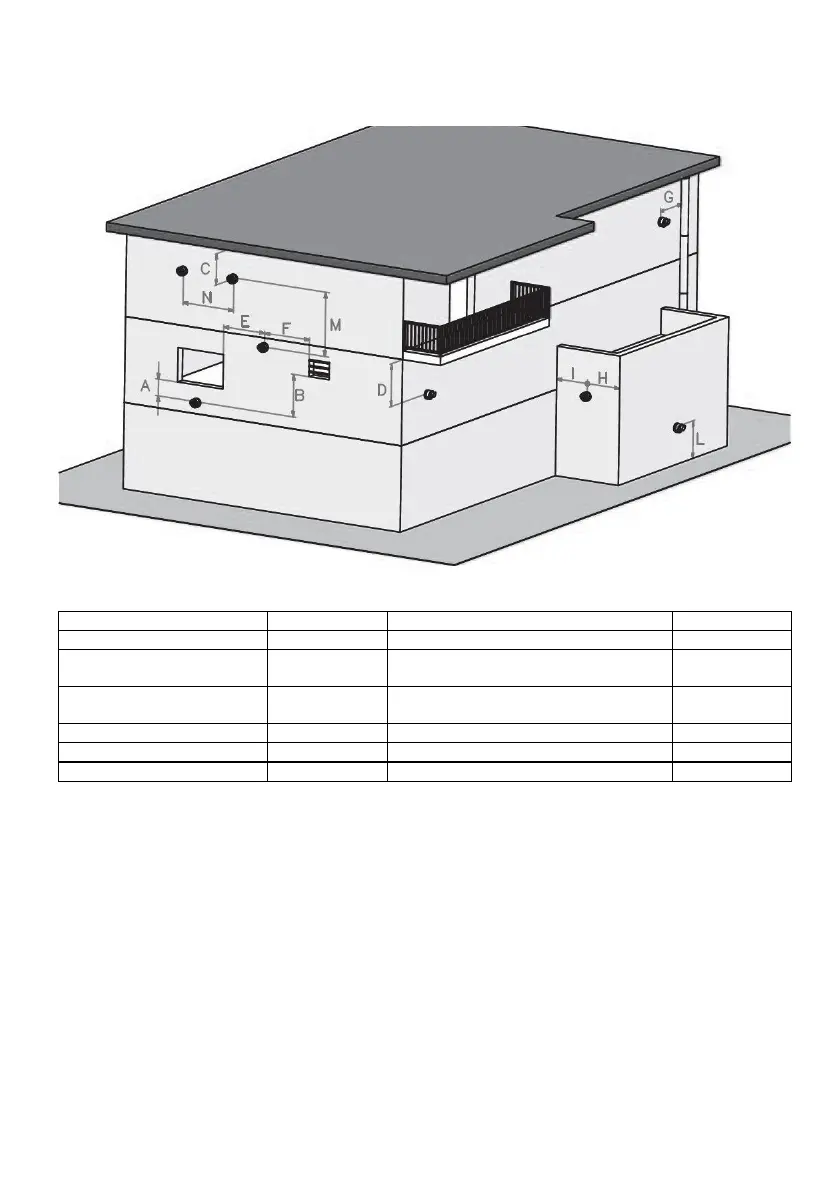

Figure 7
POSITION DISTANCE (cm) POSITION DISTANCE (cm)
A-Below a windows 60 G- Next to vertical or horizontal pipe 60
B- Below an air vent 60
H- Below the distance grille from the
outside of the building
30
C- Below rain channel 30
I- Distance from the inner corner of the
building
100
D- Under the balcony 30 L- From the ground or from the floor 180
E- Next to a window 40 M- Vertical distance of two flue outlets 150
F- Next to an air grill 60 N- Horizontal distance of two flue outlets 100
Table 3
The places where it is inconvenient to make the chimney outlet of C type (hermetic) devices are stated in
the following articles:
- Passages and holes,
- Narrow eaves gaps,
- Ventilation and lighting spaces of buildings,
- Inside the balconies,
- Elevator shafts,
- Grilles that provide fresh air to other units,
- Locations subject to direct wind resistance.
Underground, basement, etc. chimneys of products installed in spaces; endanger their habitat
It must be mounted in such a way that it does not sting and that no one can interfere with it. If an
assembly is not possible, the chimney outlet should be extended to the roof and the assembly should be
done.
