9.5.
Outdoor Sensor
To connect the room thermostat or outdoor sensor to the device, the connections behind the
control panel are used. For the room thermostat, the bridged cable connection on the back of the
control panel is removed and the outer air sensor is connected to free sockets on the terminal.
• It can be provided as an option according to boiler models.
• It allows operation of combi boiler adjusted to outside temperature.

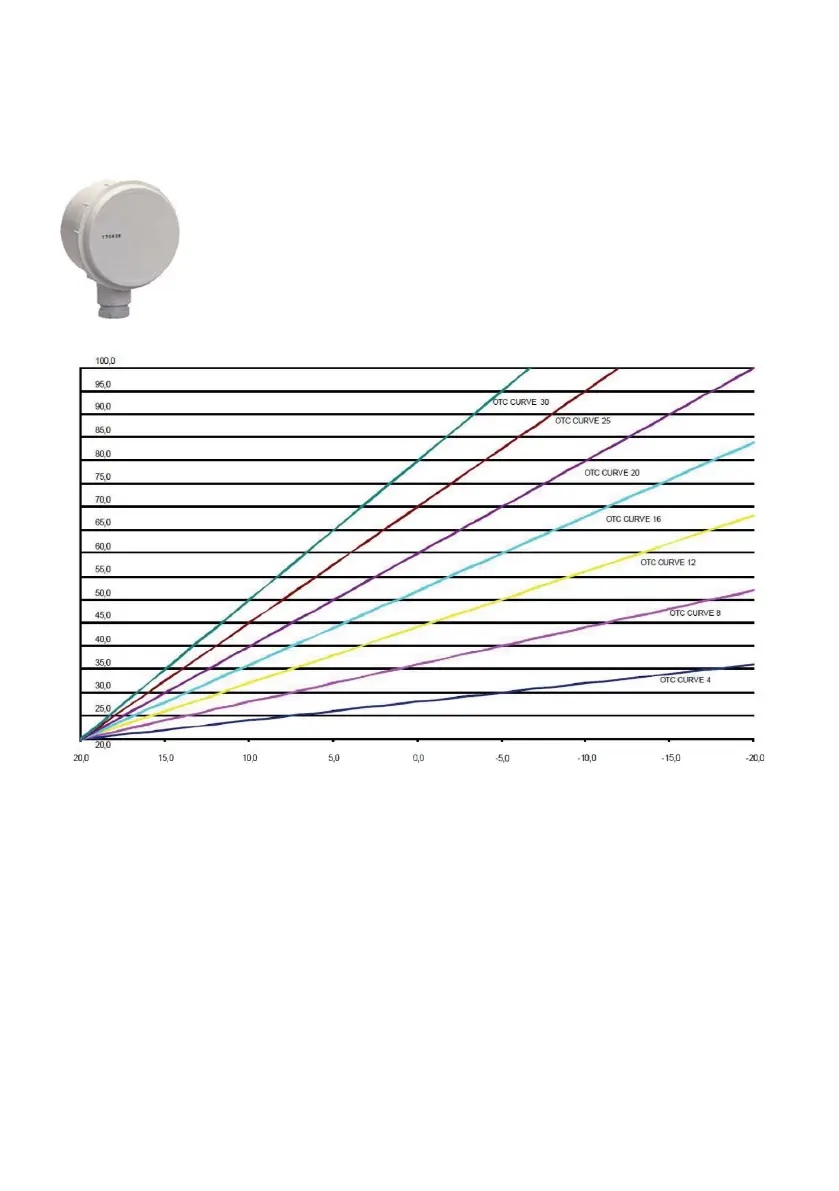

Figure 15
