E-Z-GO RXV User Manual

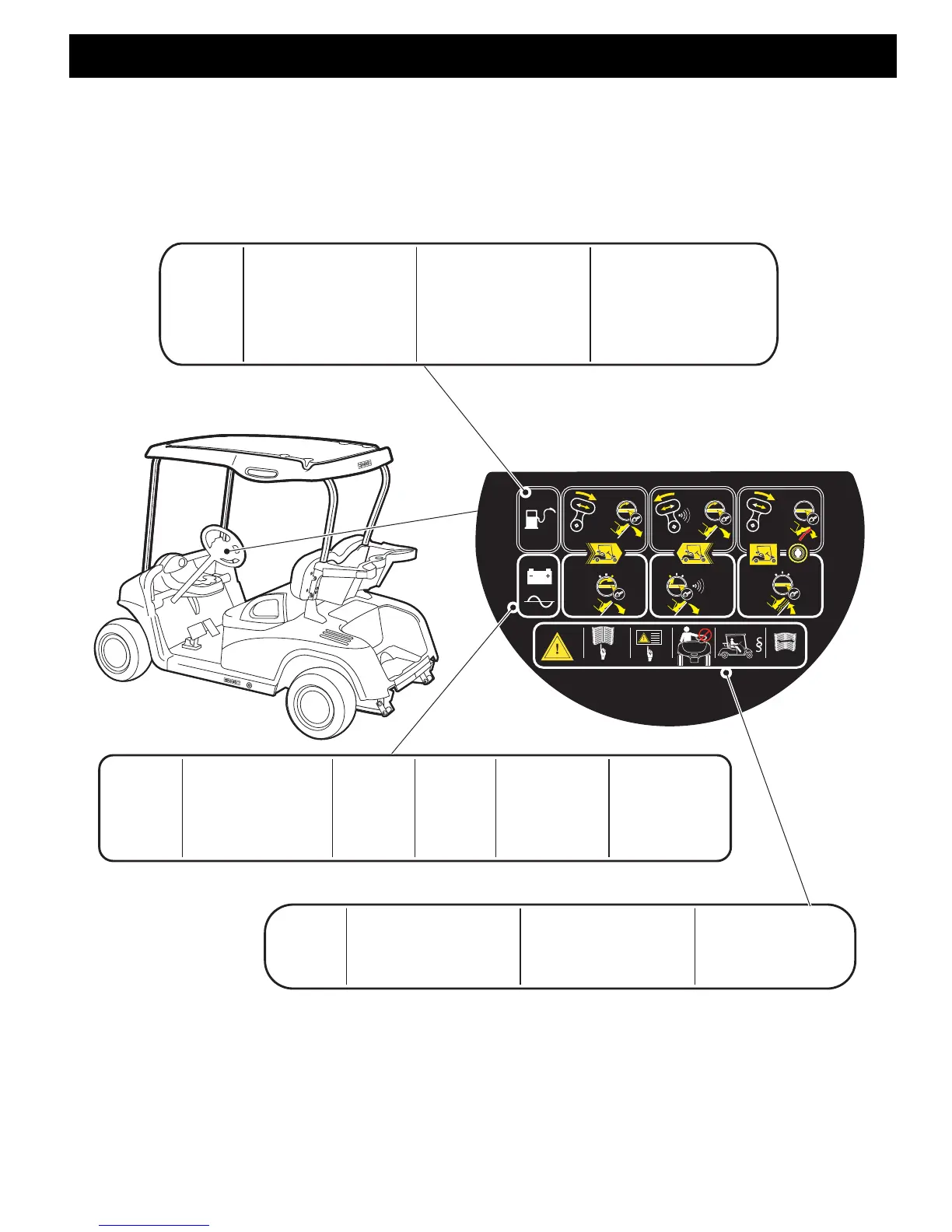

LABELS & PICTOGRAMS
Page xv
Owner’s Guide
Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notes, Cautions and Warnings.
B
B
608819
R
F
NO
FFO
I
O
NO
N
F
R
FFO
O
NO
F
FO
I
O
R
F
F
R
F
F
O
O
P
NO
N
NO
N
F
R
FFO
O
R
F
NO
FFO
I
O
www.ezgo.com
www.ezgo.com
608819
WARNING READ THE MANUAL
REPLACEMENT
IS AVAILABLE AT
www.ezgo.com
READ ALL
LABELS
OPERATE
FROM
DRIVER
SIDE
ONLY
OPERATE
ACCORDING
TO LOCAL
LAWS AND
REGULATIONS
MAINTAIN
ACCORDING
TO SERVICE &
REPAIR MANUAL
AVAILABLE AT
www.ezgo.com
FORWARD OPERATION
* TURN KEY TO ‘ON’
* MOVE DIRECTION
SELECTOR TO ‘F’
* PRESS ACCELERATOR
PEDAL GENTLY
REVERSE OPERATION
* TURN KEY TO ‘ON’
* MOVE DIRECTION
SELECTOR TO ‘R’
* PRESS ACCELERATOR
PEDAL GENTLTY
PARK VEHICLE
* MOVE DIRECTION
SELECTOR TO ‘F’
* TURN KEY TO ‘OFF’
* APPLY PARKING BRAKE
GASOLINE
VEHICLES
FORWARD OPERATION
* TURN KEY TO ‘F’
* PRESS ACCELERATOR
PEDAL GENTLY
REVERSE OPERATION
* TURN KEY TO ‘R’
* PRESS ACCELERATOR
PEDAL GENTLY
PARK VEHICLE
* TURN KEY TO ‘OFF’
ELECTRIC
VEHICLES

E-Z-GO RXV Specifications

General

Model	RXV
Category	Golf Cars
Seating Capacity	2
Power Source	Electric
Motor Type	AC Induction
Battery Voltage	48V
Steering	Self-Compensating Rack and Pinion
Ground Clearance	4.5 in
Front Suspension	Independent
Frame	Welded steel with DuraShield powder coat
Body	Plastic
Tires	18 x 8.5-8
Dimensions	47.0 in
Wheelbase	65.7 in
Vehicle Load Capacity	800 lb
Top Speed	19 mph
Batteries	6 x 8V
