Installation, Operation and Parts Manual
EE-6435B .WF
Step 3: Use the forklift to have the general parts properly positioned.
For convenient installation, it would be better to pad something supporting under the platform.
Oil cylinder, steel cable and oil hose have already been fixed in the power side platform (platform with oil cylinder beneath) before packing.
Pulleys and safety lock etc. have already been fixed in the beams before packing.

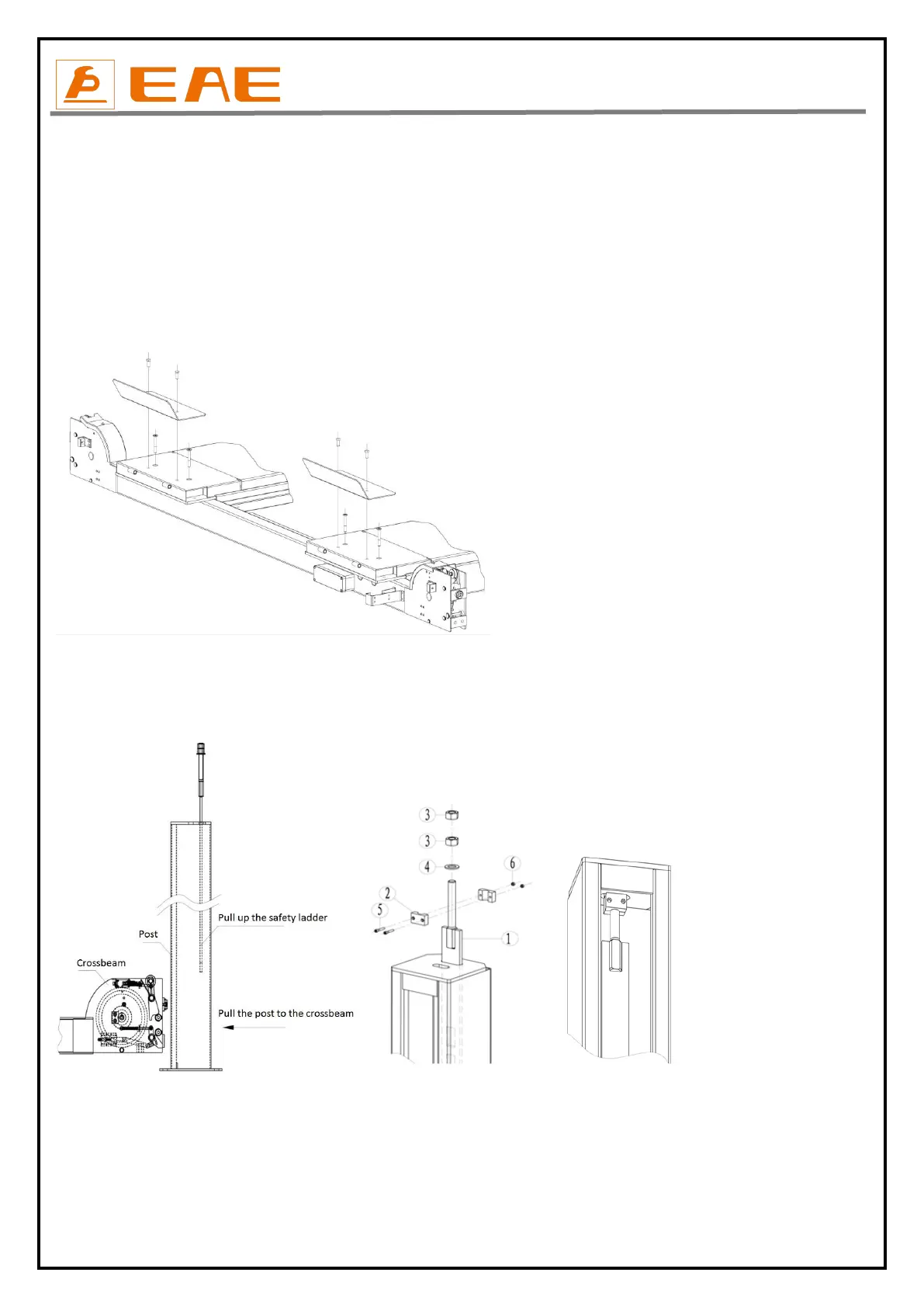

Step 4: Connect the platforms and beams
Firstly, connect the main beam (the beam which connects to the power side post)with two platforms. Align accurately the screw sockets on the
platform and the beam and fasten them (Installers can adjust the distance between two platforms on basis of practical needs.) (Meanwhile ,
pull out oil hose and air hose from the power side platform and make them go through the￠40 hole reserved on the cross beam . The two
hoses will be finally connected to power unit) Fix the wheel retainers on to the platforms .Connect the other beam in the same way.
Step 5: Connect posts and cross beams
1. Pull up the safety ladder from the post with its bottom end higher than the height of cross beam.
2. Pull the post to the cross beam as the direction arrow showed in the following drawing. Fasten the top end of safety ladders to the top plate
of each post.
