Installation, Operation and Parts Manual
EE-6435B .WF

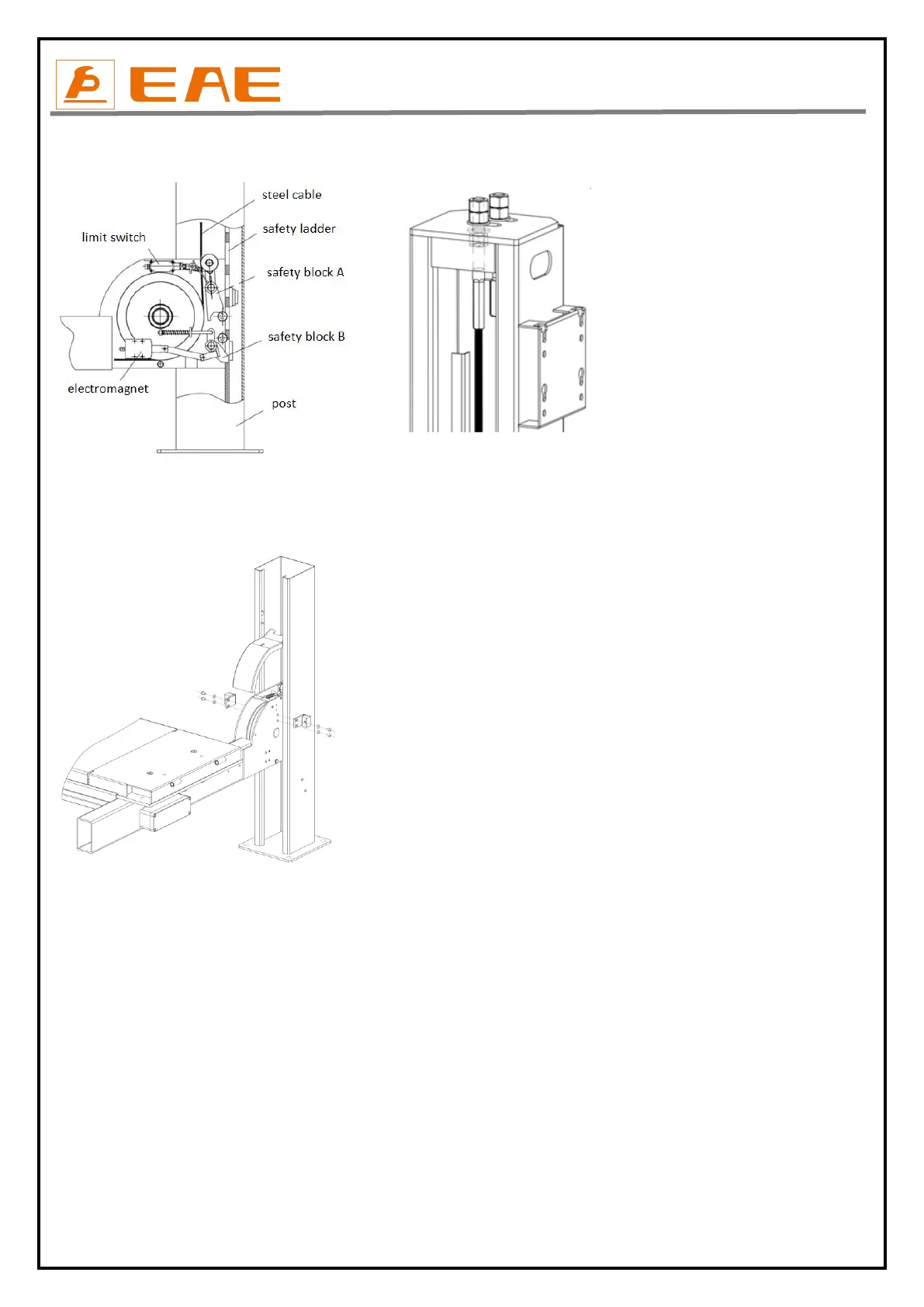

3. Pull out the steel cables from both ends of the cross beam and fasten them on the top plate of post (please see the Annex for the steel cable
connection)
Step 6: Fit on 8 nylon sliders and 4 protection covers
1. Fasten the slider to its holder and then connect the slider holder and the cross beam.
2. Fix protection covers.
Step 7: Fix the ramps.
Align the end of the platform and the hole on the ramp and connect them with shaft and cotter pins.
Step 8: Fit on four post cap on top of the four posts.
Step 9: Connect the electrical and hydraulic system.
Refer to electrical and hydraulic connection diagrams before making connection.
Attention: electrical system connection must be done by licensed technicians.
Requirements for power supply cable of the installation site: at least 2.5mm
2
wire core for 3Ph power and 4.0mm
2
wire core for 1Ph
power.
Step 10: Fill with hydraulic oil (only fresh and clean oil is allowed)
If average temperature of the installation site is higher than 18℃, it is suggested to fill with oil tank with 46# hydraulic oil while the
temperature is lower than 18℃, it is suggested to use 32# hydraulic oil. Viscosity of the oil will influence the running speed of the lift.
Attentions for adding oil：Firstly, fill the oil tank fully. It needs about 10L hydraulic oil.
After the “secondary lift ”was synchronized, lower the platform of the “main lift ”and “secondary lift” to the lowest position and refill the oil
tank until it is full which needs about 2 L hydraulic oil.
