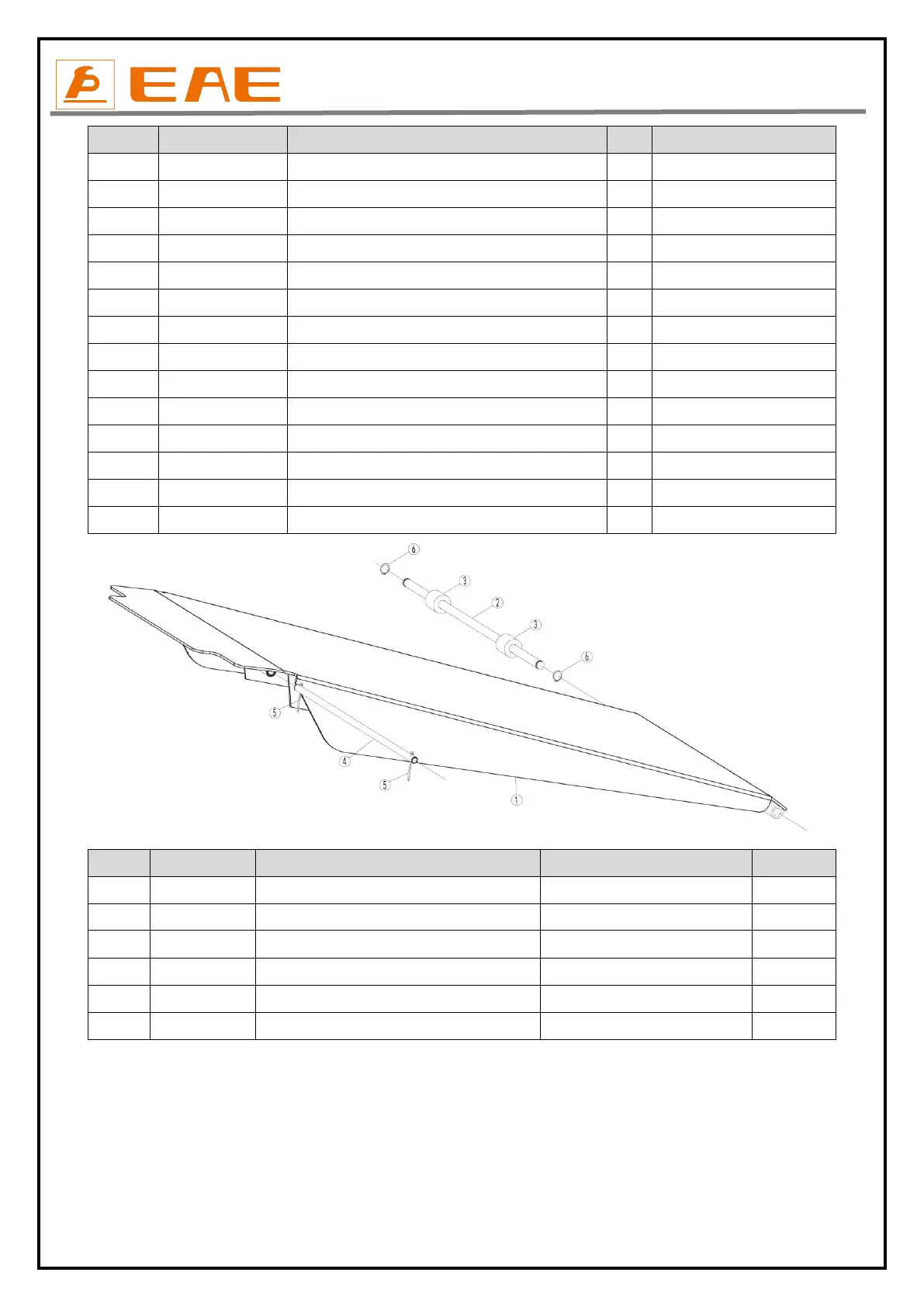

EAE EE-6435B.WF - Page 45

Installation, Operation and Parts Manual
EE-6435B .WF
45
Pos.
CODE
Name
QTY
NOTE
17
205101024
Bearing 3055
8
18
203103018
Locking nut
4
19
204101012
Flat washer
4
20
204301011
Type B circlip M 30
8
21
204301009
Circlip φ25
4
22
202109080
Hex socket cylinder head screw
8
23
204101006
Flat washer φ10
24
24
204201005
Spring washer φ10
8
25
203101006
Hex nut M10
16
26
202109043
Hex socket cylinder head screw M10*30
8
27
205101012
Bearing
8
28
202110004
Hex socket button head screw M8*12
4
29
208106001
Straight pressed oil cup
12
30
614027585
Auxiliary platform extension
4
Pos.
CODE
Name
Specification
Qty
1
614027586
Drive-on ramp
6435BWF-C18
2
2
410270201
Roller wheel shaft
6435B-A8-B3
2
3
420180010
Small roller wheel
MR30-A22-B5
4
4
410270191
Oil cylinder
6435B-A8-B2
2
5
206201001
Cotter pin φ2.5×30
φ2.5×30
4
6
204301004
Circlip φ15 (type B)
φ15
4
