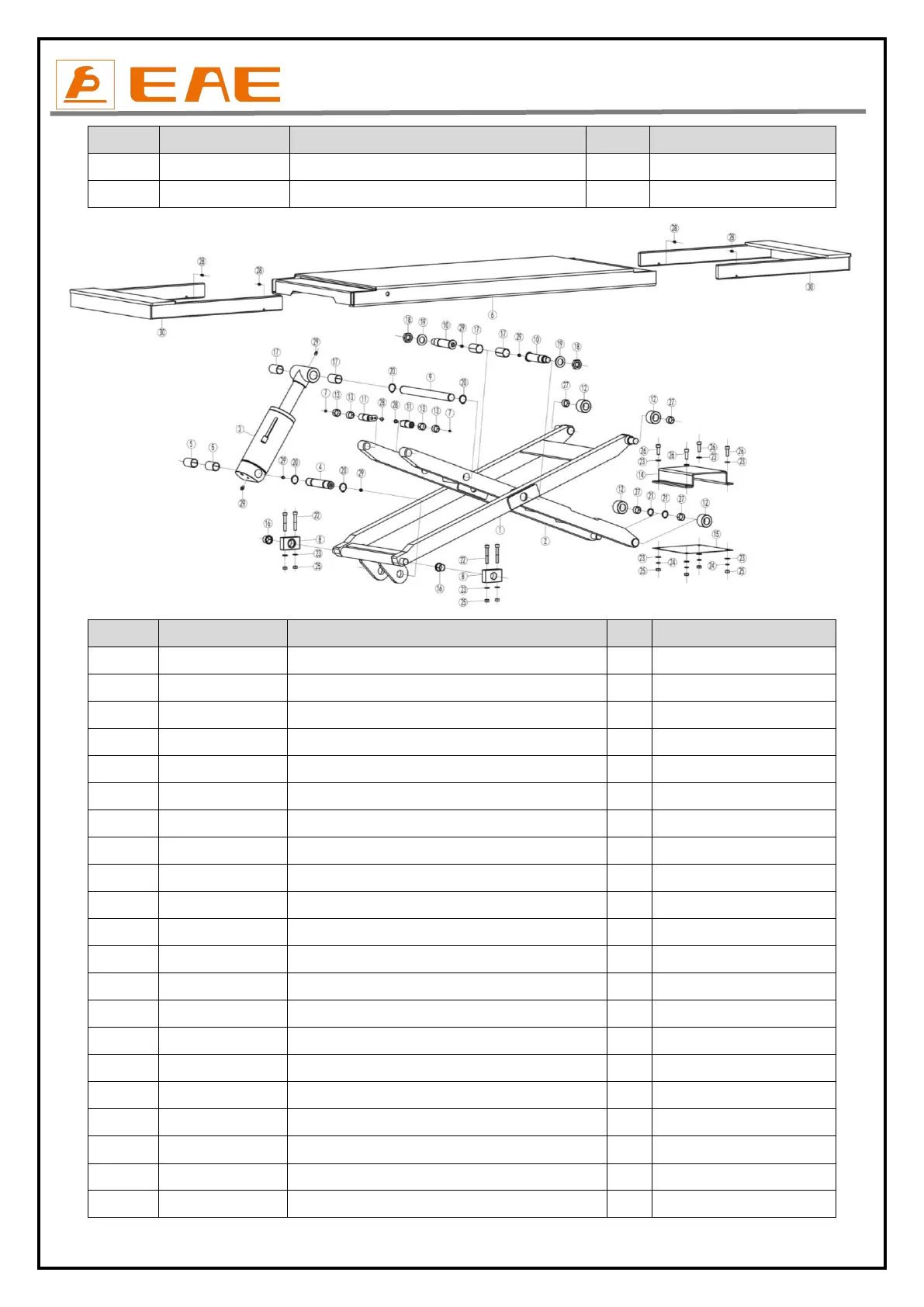

EAE EE-6435B.WF - Page 44

Installation, Operation and Parts Manual
EE-6435B .WF
44
Pos.
CODE
Name
QTY
NOTE
47
320301009
Limit switch 8104
1
48
Hydraulic block
1
Pos.
CODE
Name
QTY
NOTE
1
614027268B
Outer connection rod A of the secondary lift
1
1
614027269B
Outer connection rod B of the secondary lift
1
2
614027270B
Inner connection rod A of the secondary lift
1
2
614027271B
Inner connection rod B of the secondary lift
1
3
615027097
Main oil cylinder of the secondary lift
1
3
615027098
Secondary oil cylinder of the secondary lift
1
4
410276741
Down shaft A of oil cylinder
1
4
410276751
DOWN shaft B of oil cylinder
1
5
205101024
Bearing 3055
2
5
205101023
Bearing 3045
2
6
614027584
Auxiliary lifting platform
2
7
208106002
Pressed oil cup
2
8
410276701
Down arm holder
4
9
410276731
Shaft for piston rod
2
10
410276721C
Middle shaft
4
11
612025002
Supporting holder shaft
4
12
410276711B
UP and down wheel
8
13
205101008
Bearing 2518
8
14
410276813
Limit switch of the auxiliary lift
2
15
410276830
Padding pad
2
16
205103003
Flange bearing
4
