Insert bolt and check transducer position on transom.
3. Assembling the transducer. Once you determine the correct posi-
tion for the ratchets, assemble the transducer as shown in the follow-
ing figure. Don't tighten the lock nut at this time.

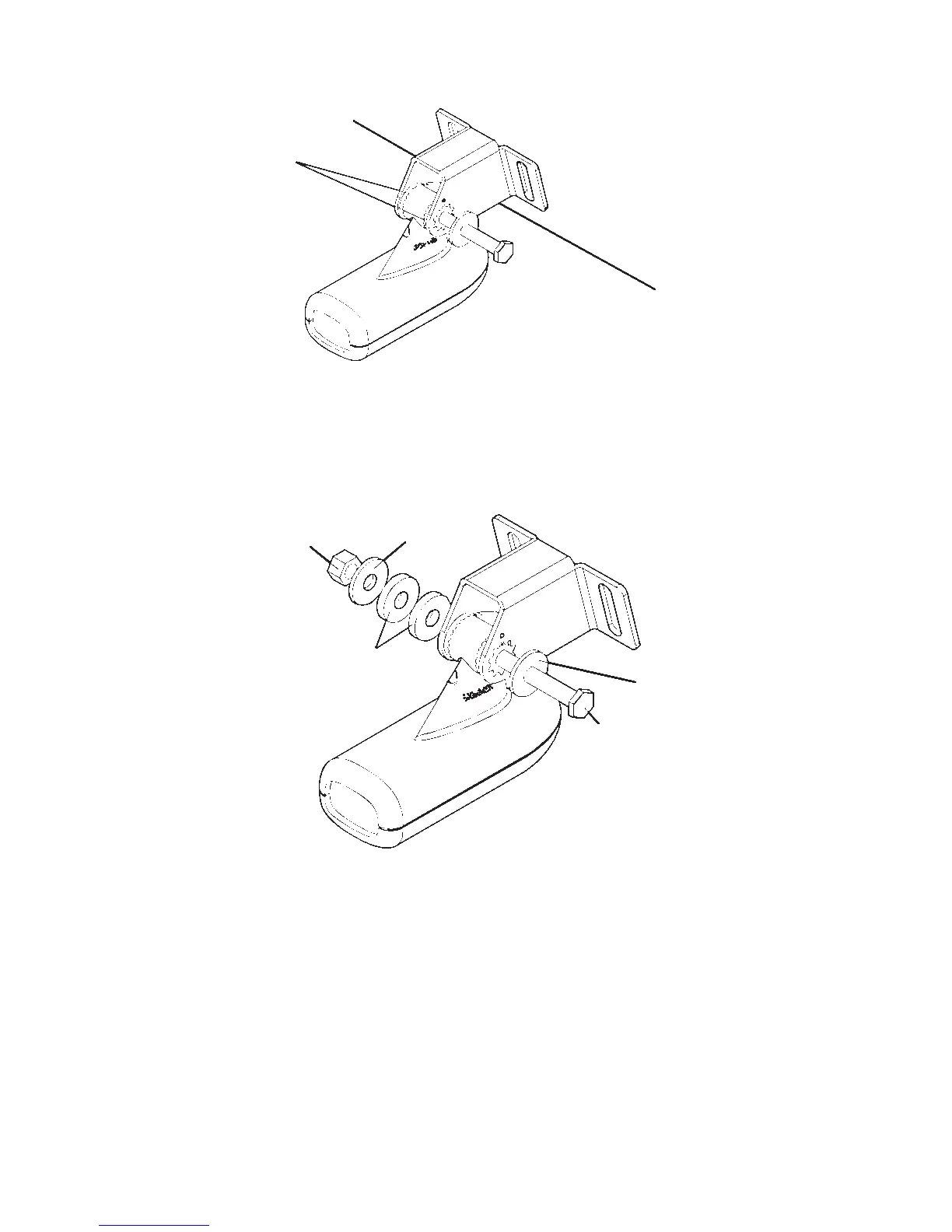

Assemble transducer and bracket.
4. Drilling mounting holes. Hold the transducer and bracket assembl
against the transom. The transducer should be roughly parallel to the
ground. The transducer's centerline should be in line with the bottom
of the hull. Don't let the bracket extend below the hull!
Ratchets
Nut
Metal
washer
Metal washer
Bolt
Rubber
washers
