69
HyperScroll™
See the entry on Ping Speed, which controls the HyperScroll feature.
Noise Rejection
See the entry on Advanced Signal Processing in this section.
Overlay Data
To change the digital data shown on top of the sonar page:
1. Press
MENU|↓ to OVERLAY DATA|ENT.
2. Press ↓ or ↑ to select Data Type, then use
← → to turn on the data
type and select its desired size —
Small, Medium, Large or Enormous.
Data Size is displayed in the bottom of the Overlay Data Shown win-
dow and may be changed using the ← → keys.

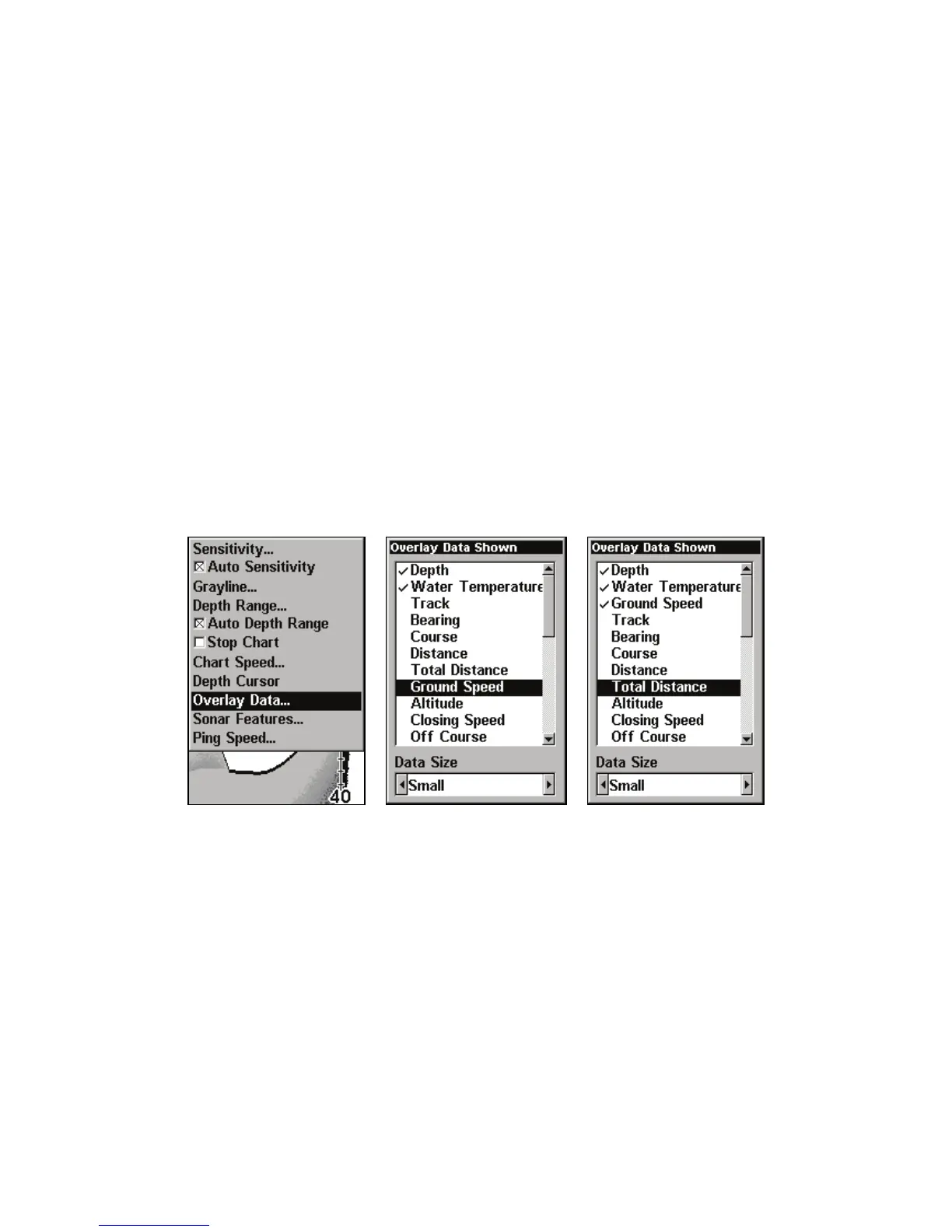

Overlay Data command on the Sonar Menu (left). Overlay Data Shown
selection menu (center). In this example, we scrolled down the data list
to highlight Ground Speed. It will be displayed in a small size. Data list
with Total Distance selected (right).
fter you have selected the data and the size you want, you can use ↓
to select other Data Types for display.
3. To return to the previous page, press
EXIT.
