Eagle Eagle-E7 - Attaching Gate Operator Arm

To Next Page

To Previous Page

Eagle Access Control Systems, Inc. www.EagleOperators.com

Gearmotor

Housing

Cover

Screw

Drive

Cover

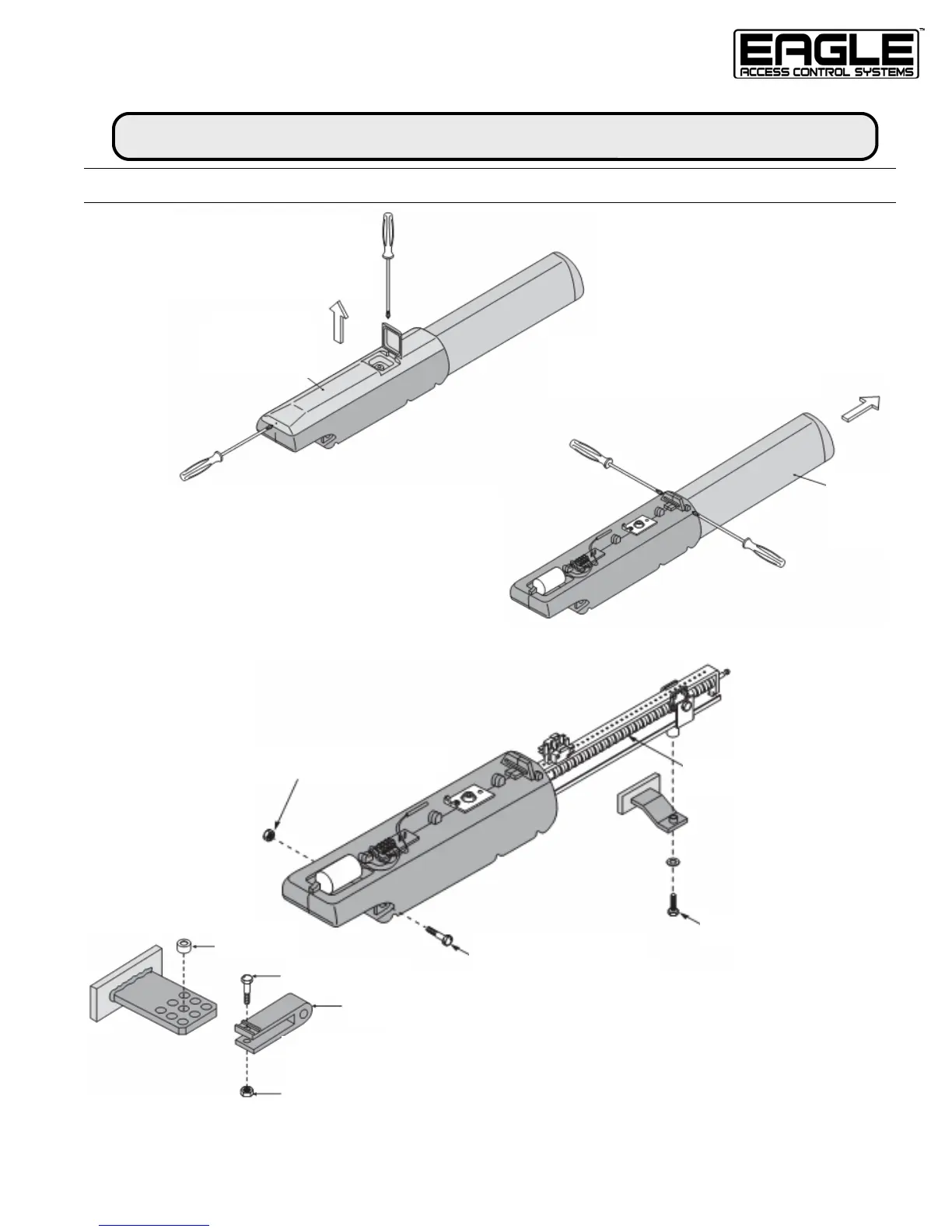

Step 2. Unscrew 2screws to

remove Screw Drive Cover

Self–locking Nut (M8)

Endless Screw Drive

Pin (M8x10)

Pin (M8x50)

Back Swivel Joint

Self-locking Nut (M8)

Bushing

Pin (M8x38)

Note: Lubricating the Endless Screw

Drive and Bushing is suggested. Use

neutral grease.

Step 1. Unscrew 2 screws to

remove Gear motor Housing

Cover

Step 3. Mount to Front & Back Brackets

ATTACHING GATE OPERATOR ARM

INSTALLATION
