Eagle Eagle-E7 - Adjusting Open & Closed Limit

Eagle Access Control Systems, Inc. www.EagleOperators.com
11

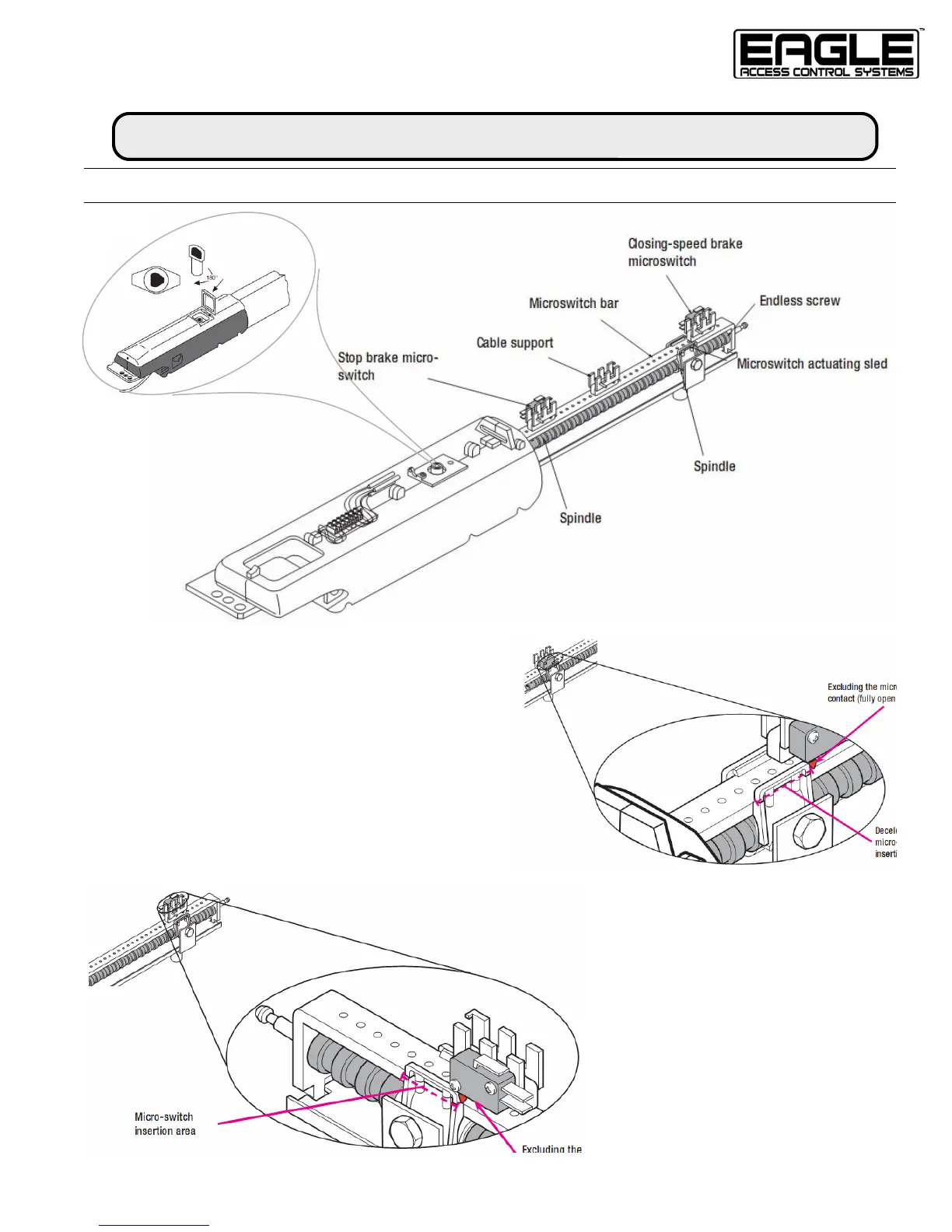

OPEN LIMIT
Using the Manual Release Key, release the
gearmotor and swing the gate-leaf to the fully
open position.
Loosen the Open Limit Micro-switch Assembly.
Slide the Micro-switch Assembly along the Mi-
cro-switch Bar until it is inserted by contact on
the Micro-switch Activating Sled.
Tighten the Micro-switch Assembly using the
respective screws.
CLOSE LIMIT
Using the Manual Release Key, release the gearmotor and
swing the gate-leaf to the fully closed position.
Loosen the Closed Limit Micro-switch
Assembly.
Slide the Micro-switch Assembly
along the Micro-switch Bar until it
is in serted by contact on the
Micro-switch Activating Sled.
Tighten the Micro-switch Assembly
using the respective screws.
Manual
Release
Key
ADJUSTING OPEN & CLOSED LIMIT
INSTALLATION
