Eagle Access Control Systems, Inc. www.EagleOperators.com
9

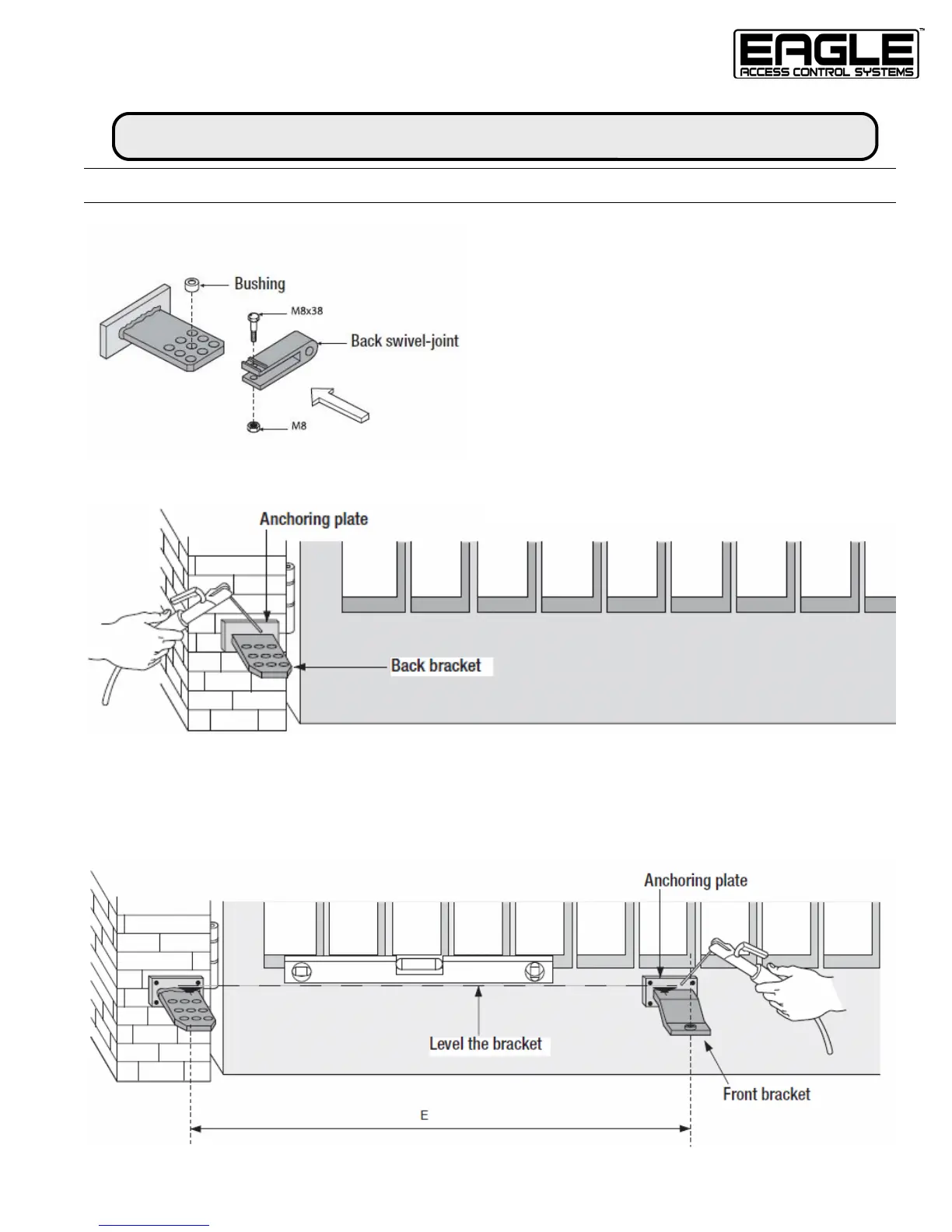

Note: With the gate in the closed position, attach the Anchoring Plate & Front Bracket to
the gate leaf, making sure that the Front Bracket is level with the Back Bracket. Ensure
proper dimension E (See Measurements Previous Page).
MOUNTING BRACKETS
INSTALLATION
Attach the anchoring plate to the pillar using
the Back Bracket. Make sure the A and B
measurements are correct (See Measure-
ments Previous Page) between the hinge axis
and central bore hole on the bracket.
To Next Page
