Eagle Access Control Systems, Inc. www.EagleOperators.com
12

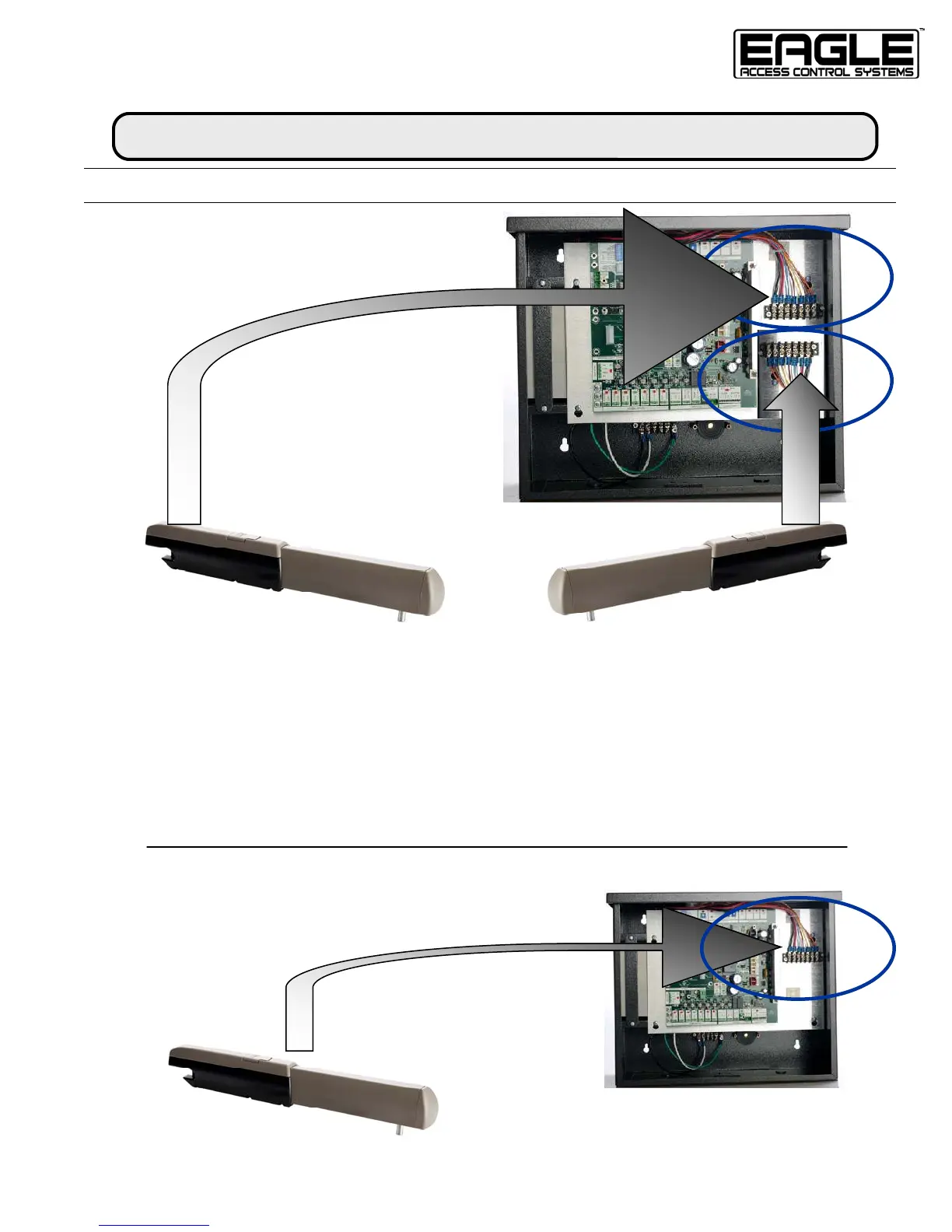

WIRING THE OPERATOR ARM
INSTALLATION
Motor 2 Motor 1
The Eagle-E7 electro-mechanical swing arm includes color coded wire for
convenient connection to the Diamond-DC Controller.
On dual gate application, the electro-mechanical farthest from the control
is generally considered Motor 2 and has 14’ of control wire. The arm clos-
est to the controller is designated Motor 1 and has 8’ of control wire.
Dual Gate Operation
Single Gate Operation
