Eagle I - Master and Slave Operation; Master Control Options

Master Board
Slave Board
Slide Gate Operators / Eagle I
Gate opening direction, motor brake
and close timer.
Use 20GA stranded wire
Please refer to page 10 for
more information on individual
switch functions.
Use 20GA stranded wire for
Master/Slave communication
NOTE: The polarity is very
important when connecting
Master / Slave Operations.
Master Control Options
Eagle Access Control Systems, Inc. / (800) 708-8848 / www.eagleoperators.com
(12)
EAGLE
EAGLE
NOTE: If the Master and Slave Operators are not communicating
properly, verify if they are on the same phase by switching the phase
jumper on either the master or the Slave Unit.

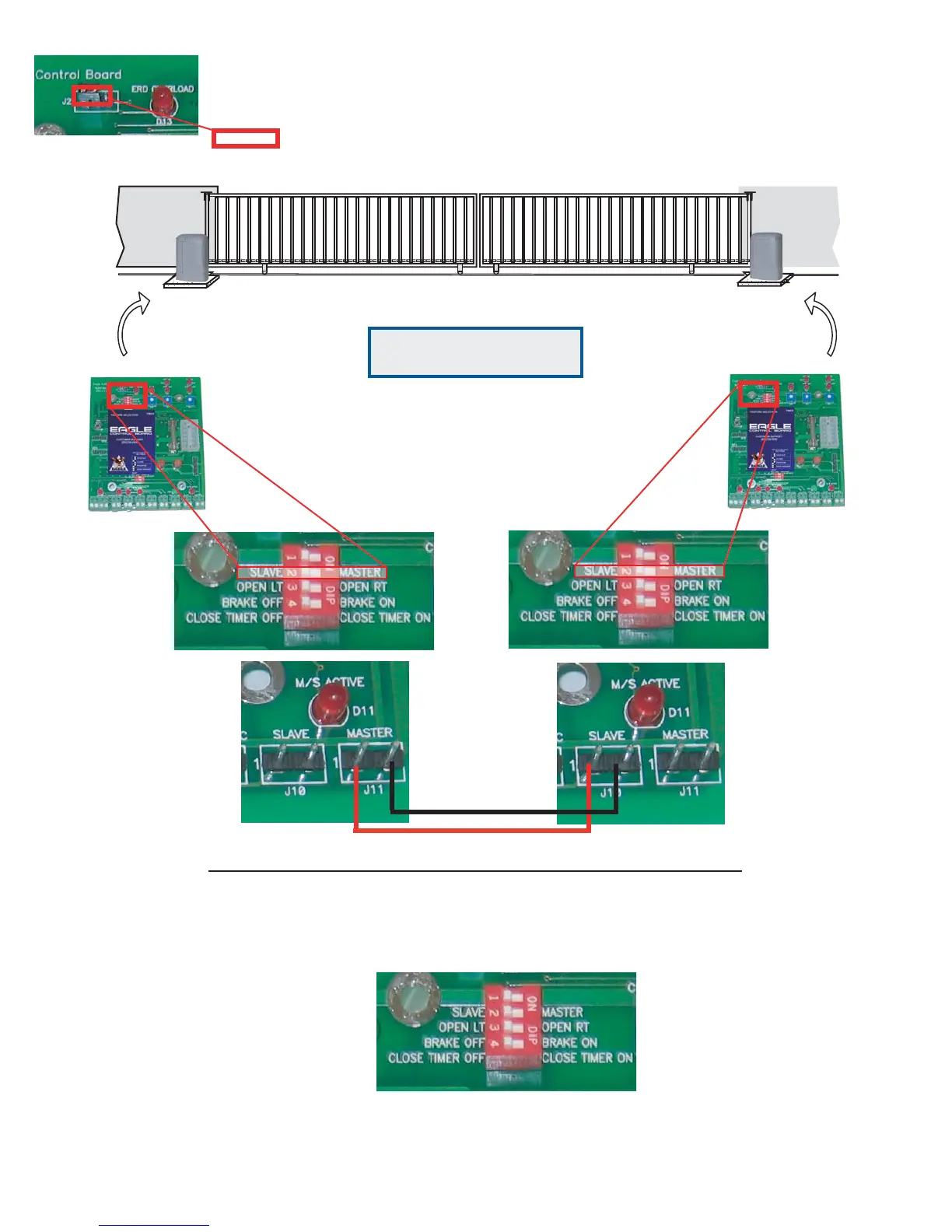

Master and Slave Operation
____________________
Set dip switch #1
(ON) for the Master
Set dip switch #1
(OFF) for the Slave
Use the feature selector to choose available features by designating the various switches (1 through 4).
